Understanding Apache Maven (Part 6): POM Reference

October 29, 2021

Author(s)

  • Avatar photo
    Chandra Guntur

    Technical Fellow | Distinguished Engineer @ BNY Mellon | Java Champion | Garden State JUG Leader

In Part 6 of the series, a walkthrough of POM content (XML) is covered!

This article is not meant for a full dissection of a pom.xml, since the Apache Maven doc does the job so well that anything else written will at best be a copy of that content. It is strongly recommended to peruse the linked doc below.

Excellent documentation of a pom.xml on the Apache Maven site: https://maven.apache.org/ref/3.6.3/maven-model/maven.html.

With the assumption that the above linked content has been read and bookmarked for future use, this blog will go through some of the common portions of the pom.xml

Reminder: Apache Maven is polyglot. XML was the first and most commonly used format for describing a POM. This blog assumes XML format but other formats share the same logic.

The project

POM Contents. The dark background elements have complex structures while the light background are simple elements. Build and Profiles have additional diagrams
POM contents. The dark background elements have complex structures while the light background is for simple elements. Build and Profiles have additional diagrams

This is the root element of a POM (Project Object Model). All convention overrides of a maven project are listed under the project element in the XML. A parent is identified by its coordinates (groupIdartifactId and version) and an optional relativePath. The relativePath by convention expects a parent to exist one directory above. This relativePath value can be overridden to point to relative alternate locations (such as same directory) or an empty value, to ignore searching locally and only search in configured repositories.

Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_project

Project Model modelVersion

A project is required to conform to an XML Schema Definition (XSD) version. Apache Maven 3.6.3 depends on Model 4.0.0. Ongoing discussions propose a conformity in future releases (Apache Maven 5 potentially being the next, possibly skipping 4, and the model version for such to be 5.0.0). A POM requires a modelVersion element that is set to 4.0.0 for use with Apache Maven 3.x.x.

Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_project

Project Coordinates

A project will need to specify its GAV (Group-Artifact-Version) coordinates. A POM can also specify a parent from which a groupIdand version can be inherited. While a project can share the groupId and version with its parent, it will require a unique artifactIdunder that group to distinguish itself from other projects under the same group. Also, the groupId and version of the current POM can be specified in the pom.xml, in which case they override whatever values the parent provides. Maven works on convention and overrides

When inheriting from a parent POM, Apache Maven inherits the following:

  • any coordinates (typically a groupId and a version)
  • properties element
  • urlinceptionYearorganizationdeveloperscontributorsmailingListsscm elements
  • issueManagementciManagement elements
  • dependencies and dependencyManagement elements
  • repositories and pluginRepositories elements
  • plugins element along with any plugin executions and plugin configurations
  • reporting element
  • profiles element

Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_project

Output packaging

This element (defaults to a jar) defines the output artifact type when the POM is executed. Typical values may include (but are not limited to): jarwarearpom etc.

Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_project

Project namedescription and url

The name can be used to provide a wordy yet small title for the project. If not included, maven uses the directory name of the the project. The name is displayed in the output when executing the POM.

The description can be used to include a more verbose description of the project’s intent. It is optional to include a description, but generally considered a good practice to include one.

The url can be used to provide a link to a webpage or site relevant to the project. It is optional to include a URL.

Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_project

Relationship modules

If the current project itself is a parent or an aggregator POM (see Part 2 for definitions), then the optional modules element can be used. Each listed module refers to a relative path to the child project’s directory. It is considered a best-practice to name the artifactId of the child the same as its base directory

Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_project

Source Control Management scm

The scm element allows specifying the connection information to the source control system for the current project. This information is valuable to the the release process for tagging the source code. IDEs too can benefit from determining the source control location.

Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_scm

Dependency & Plugin Artifact Search repositories and pluginRepositories

When maven executes a POM and builds an artifact, it also builds in some metadata. This metadata includes a lot of content from the POM. Adding repository and pluginRepository sections in the POM mean that potential consumers of the current project artifacts will need to resolve from the same location as was used in the current POM. This may cause potential problems if the current repositories are private or under some limited access. Best to include these elements in a settings.xml instead. More on this later, but a link to a detailed reference to the settings.xml is included here: https://maven.apache.org/ref/3.6.3/maven-settings/settings.html. It describes what content is valid in a settings.xml.

Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_repository
Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_pluginRepository

Artifact Publishing distributionManagement

distributionManagement section is used to provide locations for publishing the build outputs (artifacts as well as site content). It allows for specifying repository locations where either a SNAPSHOT version or a release version of the artifact can be pushed. Additionally, the location to deploy the site content can be included. In most commercial and large workplaces, a parent POM for the organization provides a generic set of distribution management which the current project can inherit from.

Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_distributionManagement

Issue Tracking & Continuous Integration issueManagement and ciManagement

It is a good discipline for a project to have issue and bug trackers. These are used to identify rationale for changes being made to the source code either for maintaining a history or changes or for auditing why a change was made. The issueManagement section is where the location of the tracking system. It is commonly used in site generation.

Similar to tracking issues, it is considered good discipline for a project to have a continuous integration build. Builds could be triggered either on a change in the project or manually or on a periodic basis. Similar to configuring issue management, maven POM has a ciManagement section which allows specifying the location as well as notification configuration for success and failures of builds.

Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_issueManagement
Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_ciManagement

POM Properties properties

If a project has values which are re-used in multiple locations and all require update when this value has to change, then it is ideal to take advantage of using properties. Common usages include version numbers of dependencies, re-used configuration values and replacements of variables (templates, filters etc.) during the maven execution. The properties are declared as <name>value</name> pairs in XML and can be used later in the POM as dollar-substitutions ${name}.

Dependency Management dependencyManagement

In Part 5dependencyManagement was covered as a lookup reference to coerce maven to resolve to a desired version of a dependency. The dependencyManagement element contains a dependencies element which is a set of dependency elements that may (or may not) be used while generating the effective POM. Dependencies declared under this element can include GAV coordinates as well as scopeoptional and exclusions elements.

Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_dependencyManagement

Project Dependencies dependencies

The actual set of dependencies used in a project are declared in a dependencies element. Each dependency element declared within is considered to be of the nearest depth when maven generates an effective POM for the current project. A dependencycan be declared with its GAV coordinates as well as scopeoptional and exclusions elements.

If a dependency was already added as a lookup reference in the dependencyManagement section, then such a dependency here can skip inclusion of a version (so the version specified in the dependencyManagement can be used). All scope, optional and exclusions declared in the dependencyManagement section are incorporated when just a groupId and artifactId are specified in this section, for any looked up dependency.

Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_dependency
Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_exclusion

The build instructions

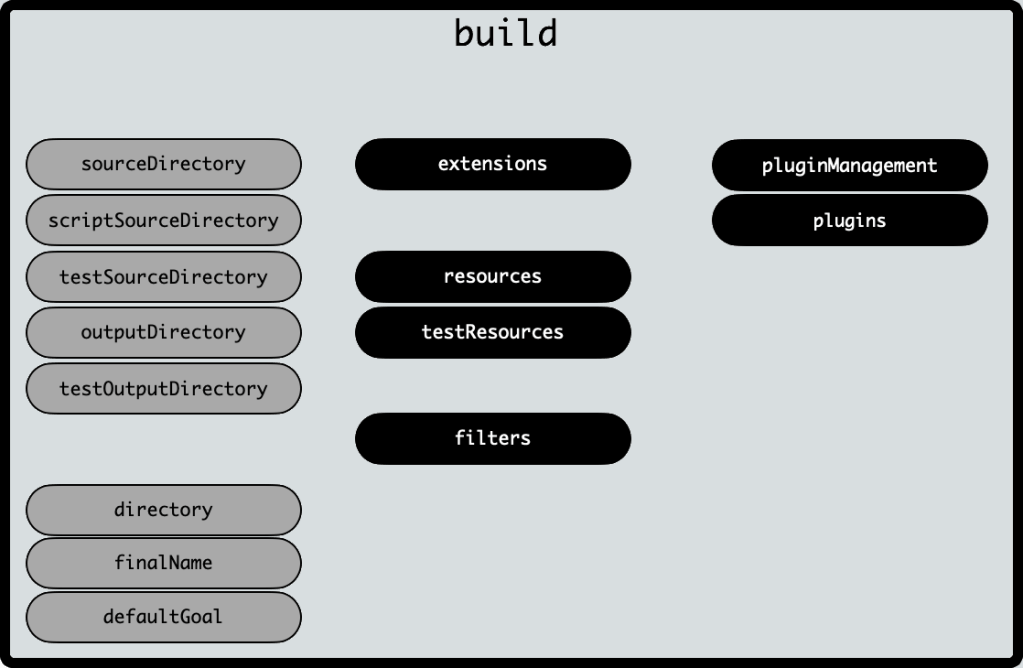

Build element contents. The dark background elements have complex structures while the light background is for simple elements.
Build element contents. The dark background elements have complex structures while the light background is for simple elements.

Most of the instructions to chain build configuration together are all defined under a build element. A few elements of note are listed below.

Configuring directories for source, script and test files

While it is heavily recommended to not change the convention of sources, scripts and test file locations, there is, at times, a need to customize or alter such. It may also be rarely required to alter the output location of a build. In such cases it is possible to point to the directories by setting their relative paths (to the pom.xml) via the following:

  • sourceDirectory
  • scriptSourceDirectory
  • testSourceDirectory
  • outputDirectory
  • testOutputDirectory

Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_build

Maven extensions

The ability to extend maven functionality to perform other tasks. These extensions are declared with GAV coordinates. Many of such extensions are Wagon Providers, for providing artifact customization (file providers, ftp provider, SSH providers, HTTP providers etc.). Newer extensions are for format benefits of a polyglot maven (Ruby, XML, YAML, JSON etc.).

Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_extension

Customizing resources

Resources are additional content useful in running the project or its tests. Content could include properties, configurations, images and other assets that do not necessarily need compilation. Some resources may also need values added (or replaced) during the maven execution of the project POM. The resources (and the testResources compliment) element allows defining a set resource(or testResource) elements which can customize the location in the final artifact, replacement patterns the location of resources (overriding convention or src/main/resources or src/test/resources. It is possible to filter includes and excludessections based on filenames and wildcard patterns.

Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_resource
Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_testResource

Configuring plugins and pluginManagement

Plugins are maven’s means of executing goalsPlugin goals can bind to maven lifecycle phases as was discussed in Part 4. Plugins implement behavior that execute in the lifecycle phase/goal sequence. A plugins element can contain several plugin definitions which can further be configured, if needed.

pluginManagement section is to a plugin what a dependencyManangement is to a dependency. A lookup table for configured plugins to be re-used across many modules in the project. Plugins declared in a pluginManagement are not loaded but are used to specify a reusable version and configuration setup that can be re-used within the actual build plugins if listed. Similar to dependencyManagement, a plugin declared in an accessible pluginManagement section can skip re-configuration and skip the version in the build -> plugins section.

Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_plugin
Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_pluginManagement

Customizing the entire POM based on profiles

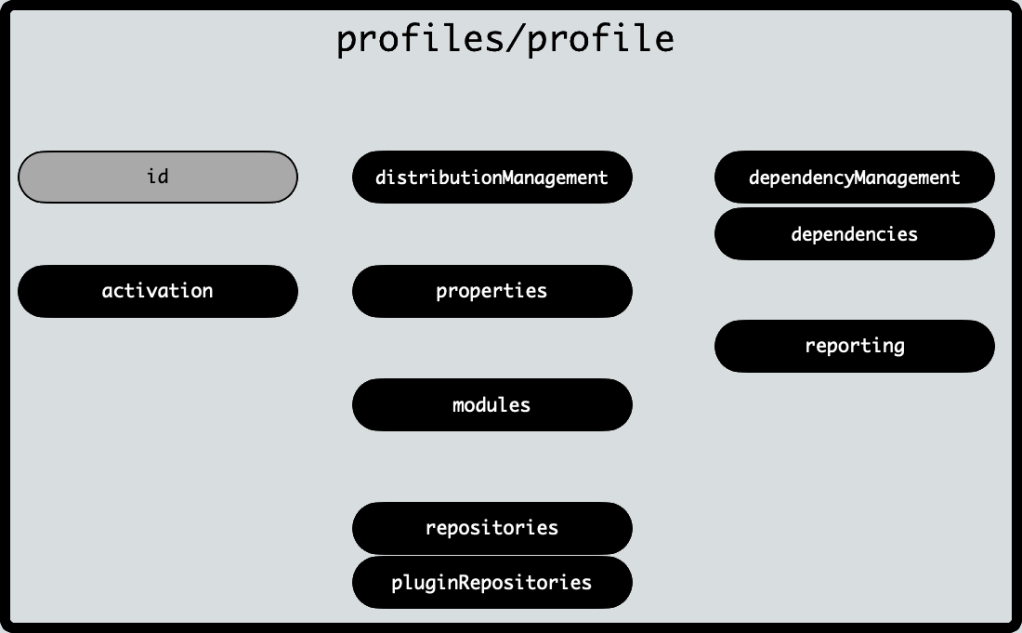

Profiles/profile content. The dark background elements have complex structures while the light background is for simple elements.
Profiles/profile content. The dark background elements have complex structures while the light background is for simple elements.

Profiles will require an entire blog post by themselves. Maven offers build profiles which can be activated either by default, orwhen certain conditions are met or by flagging them in a command line to maven execution. Build profiles contain many of the sections already present under the project element but are only executed when the profile is activated.

profiles element contains a set of profile elements which can be activated:

  • by default (activeByDefault)
  • matched by JDK definition in a toolchains.xml
  • based on operating system (name, family, architecture and/or version)
  • based on a property existence or a specific value
  • based on a file either existing or missing

A profile can contain several other elements including:
build (resourcestestResourcespluginManagementplugins),
modules
distributionManagement
properties
dependencyManagement
dependencies
repositories
pluginRepositories
reporting
etc., all covered earlier in this series.

Link: https://maven.apache.org/ref/3.6.3/maven-model/maven.html#class_profile

Additional links

Link: https://maven.apache.org/pom.html
Link: https://maven.apache.org/guides/introduction/introduction-to-the-pom.html

That’s a wrap on this blog. Next up is Configuring Apache Maven. Have fun !
