Micrometer & Prometheus in Spring Boot: Kafka Burger Orders🍔📨

👨‍💻 GitHub: https://github.com/vinny59200/dukeburger

🔵⚪⚪⚪⚪⚪⚪⚪⚪⚪⚪⚪

TL;DR

This guide shows how to use Micrometer and Prometheus in Spring Boot to track a custom metric for a Kafka-driven Burger Orders app. You’ll post a burger order to a REST endpoint, publish it to Kafka, consume the topic, and increment a counter for all “DukeBurger” orders. Copy the snippets, run, and you’ll see your metric on /actuator/prometheus.

🔵🔵⚪⚪⚪⚪⚪⚪⚪⚪⚪⚪

Why Micrometer and Prometheus?

Micrometer is a vendor-neutral metrics facade. Your code records counters, timers, and gauges once; Micrometer ships those to many backends (Prometheus, Datadog, etc.) via simple registries. Prometheus is a time-series database that pulls metrics by scraping an HTTP endpoint periodically (Spring exposes /actuator/prometheus). Micrometer Application Observability

Key ideas:

• Micrometer offers a simple API: Counter, Timer, Gauge.
• Spring Boot Actuator autoconfigures Micrometer and exposes metrics endpoints, including Prometheus format. See
• Prometheus “scrapes,” so your app just exposes a text endpoint—no push needed. docs.micrometer.io

🔵🔵🔵⚪⚪⚪⚪⚪⚪⚪⚪⚪

What the Burger Orders App Does

1. Order a burger via HTTP POST /orders?burger=DukeBurger.
2. Produce an Avro message to Kafka topic burger.orders.
3. Consume burger.orders with @KafkaListener.
4. Increment a Micrometer Counter named events_DukeBurger_total whenever the burger is "DukeBurger".
5. Expose metrics at /actuator/prometheus for Prometheus to scrape.

This pattern is common: REST → Kafka → Consumer → Metric. Spring Kafka makes producing and consuming concise; Micrometer makes metrics easy. See

🔵🔵🔵🔵⚪⚪⚪⚪⚪⚪⚪⚪

The Data Contract (Avro)

{
  "type": "record",
  "name": "BurgerOrder",
  "namespace": "com.vv.burger",
  "fields": [
    { "name": "burger", "type": "string" },
    { "name": "timestamp", "type": "string" }
  ]
}

Why: A tiny schema keeps the demo clear. Avro gives you compact messages and generated classes.

🔵🔵🔵🔵🔵⚪⚪⚪⚪⚪⚪⚪

Hot Spots: Minimal Code You Need

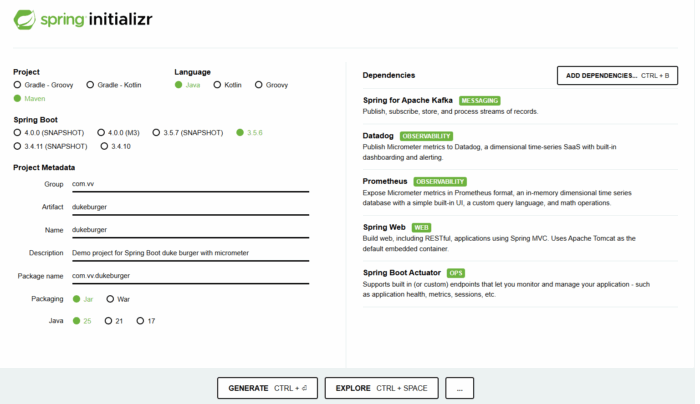

Spring initializer for Micrometer & Prometheus in Spring Boot: Kafka Burger Orders

1) Expose a Counter with Tags (Micrometer)

package com.vv.burger.config;

import io.micrometer.core.instrument.Counter;
import io.micrometer.core.instrument.MeterRegistry;
import io.micrometer.core.instrument.Tag;
import io.micrometer.core.instrument.Tags;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class MetricsConfig {

    @Bean
    public Counter burgerOrderCounter(MeterRegistry registry) {
        // Common tags for the burger app
        Tags tags = Tags.of(
                Tag.of("app", "burger-service"),
                Tag.of("topic", "burger.orders")
                           );

        return Counter.builder("events_DukeBurger_total")
                      .description("Count of DukeBurger order events processed")
                      .baseUnit("orders")
                      .tags(tags)
                      .register(registry);
    }
}

Side note: We add consistent tags now (app, topic) so you can filter and graph later. See

🔵🔵🔵🔵🔵🔵⚪⚪⚪⚪⚪⚪

2) REST Controller → Produce to Kafka

package com.vv.burger.controller;

import com.vv.burger.BurgerOrder;
import org.apache.kafka.clients.producer.ProducerRecord;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.kafka.core.KafkaTemplate;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import java.nio.charset.StandardCharsets;
import java.time.OffsetDateTime;
import java.util.UUID;

@RestController
@RequestMapping( "/orders" )
public class OrderController {

    private final KafkaTemplate<String, BurgerOrder> kafkaTemplate;
    private final String                             topic;

    public OrderController( KafkaTemplate<String, BurgerOrder> kafkaTemplate,
                            @Value( "${app.kafka.topic}" ) String topic ) {
        this.kafkaTemplate = kafkaTemplate;
        this.topic = topic;
    }

    @PostMapping
    public String sendOrder( @RequestParam String burger ) {
        // 1. Build the Avro payload (BurgerOrder must be a generated Avro class)
        BurgerOrder order = BurgerOrder.newBuilder()
                                       .setBurger( burger )
                                       .setTimestamp( OffsetDateTime.now()
                                                                    .toString() )
                                       .build();

        // 2. Create CloudEvent metadata as headers
        String id = UUID.randomUUID()
                        .toString();
        OffsetDateTime now = OffsetDateTime.now();

        ProducerRecord<String, BurgerOrder> record = new ProducerRecord<>( topic, order );
        record.headers()
              .add( "ce_id", id.getBytes( StandardCharsets.UTF_8 ) );
        record.headers()
              .add( "ce_type", "BurgerOrder".getBytes( StandardCharsets.UTF_8 ) );
        record.headers()
              .add( "ce_source", "http://localhost/orders".getBytes( StandardCharsets.UTF_8 ) );
        record.headers()
              .add( "ce_specversion", "1.0".getBytes( StandardCharsets.UTF_8 ) );
        record.headers()
              .add( "ce_time", now.toString()
                                  .getBytes( StandardCharsets.UTF_8 ) );
        record.headers()
              .add( "ce_subject", "order".getBytes( StandardCharsets.UTF_8 ) );
        record.headers()
              .add( "ce_datacontenttype", "application/avro".getBytes( StandardCharsets.UTF_8 ) );

        // 3. Send the record
        kafkaTemplate.send( record );

        return "✅ Order sent to Kafka: " + burger;
    }
}

Side note: The headers mimic CloudEvents so you can plug into event tooling later. This is optional for the metric. Cloud Events

🔵🔵🔵🔵🔵🔵🔵⚪⚪⚪⚪⚪

3) Kafka Consumer → Count “DukeBurger”

package com.vv.burger.consumer;

import com.vv.burger.BurgerOrder;
import io.cloudevents.CloudEvent;
import io.cloudevents.core.builder.CloudEventBuilder;
import io.micrometer.core.instrument.Counter;
import org.apache.kafka.clients.consumer.ConsumerRecord;
import org.apache.kafka.common.serialization.StringDeserializer;
import org.springframework.context.annotation.Bean;
import org.springframework.kafka.annotation.KafkaListener;
import org.springframework.kafka.config.ConcurrentKafkaListenerContainerFactory;
import org.springframework.kafka.core.ConsumerFactory;
import org.springframework.stereotype.Component;

import java.net.URI;
import java.time.OffsetDateTime;
import java.util.Map;

@Component
public class ConsumerApp {

    // Injects the Counter bean defined in MetricsConfig (events_DukeBurger_total)
    private final Counter burgerOrderCounter;

    public ConsumerApp( final Counter burgerOrderCounter ) {
        this.burgerOrderCounter = burgerOrderCounter;
    }

    @KafkaListener( topics = "burger.orders",
                    groupId = "group1" )
    public void receive( ConsumerRecord<String, BurgerOrder> record ) {
        BurgerOrder order = record.value();

        // Optionally reconstruct CloudEvent from headers
        CloudEvent cloudEvent = CloudEventBuilder.v1()
                                                 .withId( getHeader( record, "ce_id" ) )
                                                 .withType( getHeader( record, "ce_type" ) )
                                                 .withSource( URI.create( getHeader( record, "ce_source" ) ) )
                                                 .withSubject( getHeader( record, "ce_subject" ) )
                                                 .withTime( OffsetDateTime.parse( getHeader( record, "ce_time" ) ) )
                                                 .withDataContentType( getHeader( record, "ce_datacontenttype" ) )
                                                 .withData( "application/avro", order.toString()
                                                                                     .getBytes() ) // optional
                                                 .build();

        System.out.println( "📥 Received order: " + order.getBurger() + " at " + order.getTimestamp() );
        System.out.println( "🧾 CloudEvent type: " + cloudEvent.getType() + ", id: " + cloudEvent.getId() );

        if ( isDukeBurger( order ) ) {
            burgerOrderCounter.increment();
        }
    }

    private boolean isDukeBurger( final BurgerOrder order ) {
        return "DukeBurger".equals( order.getBurger()
                                         .toString() );
    }

    private String getHeader( ConsumerRecord<?, ?> record, String key ) {
        return new String( record.headers()
                                 .lastHeader( key )
                                 .value() );
    }

    @Bean
    public ConcurrentKafkaListenerContainerFactory<String, BurgerOrder> kafkaListenerContainerFactory() {
        ConcurrentKafkaListenerContainerFactory<String, BurgerOrder> factory =
                new ConcurrentKafkaListenerContainerFactory<>();
        factory.setConsumerFactory( consumerFactory() );
        return factory;
    }

    public ConsumerFactory<String, BurgerOrder> consumerFactory() {
        Map<String, Object> props = Map.of(
                "bootstrap.servers", "kafka:9092",
                "group.id", "group1",
                "key.deserializer", StringDeserializer.class.getName(),
                "value.deserializer", io.confluent.kafka.serializers.KafkaAvroDeserializer.class.getName(),
                "schema.registry.url", "http://schema-registry:8081",
                "specific.avro.reader", true
                                          );

        return new org.springframework.kafka.core.DefaultKafkaConsumerFactory<>( props );
    }
}

Side note: @KafkaListener binds the method to the topic with minimal boilerplate. Keep consumer config small for a first run. See

🔵🔵🔵🔵🔵🔵🔵🔵⚪⚪⚪⚪

4) Avro Bytes → Object (utility)

package com.vv.burger.consumer;

import com.vv.burger.BurgerOrder;
import org.apache.avro.io.BinaryDecoder;
import org.apache.avro.io.DecoderFactory;
import org.apache.avro.specific.SpecificDatumReader;

import java.io.ByteArrayInputStream;

public class AvroUtils {
    public static BurgerOrder fromBytes( byte[] bytes ) {
        try ( ByteArrayInputStream in = new ByteArrayInputStream( bytes ) ) {
            SpecificDatumReader<BurgerOrder> reader = new SpecificDatumReader<>( BurgerOrder.class );
            BinaryDecoder decoder = DecoderFactory.get()
                                                  .binaryDecoder( in, null );
            return reader.read( null, decoder );
        } catch ( Exception e ) {
            throw new RuntimeException( "Failed to deserialize BurgerOrder Avro event", e );
        }
    }
}

Side note: Spring Kafka + Confluent deserializer already returns BurgerOrder, so you rarely need this. It’s useful in tests or when you manually handle bytes.

🔵🔵🔵🔵🔵🔵🔵🔵🔵⚪⚪⚪

Application Properties (essentials)

spring:
  application:
    name: burger-service

# Kafka
app:
  kafka:
    topic: burger.orders

# Actuator + Micrometer Prometheus
management:
  endpoints:
    web:
      exposure:
        include: health,info,metrics,prometheus
  endpoint:
    health:
      show-details: always

Side note: This exposes /actuator/prometheus so Prometheus can scrape. See

🔵🔵🔵🔵🔵🔵🔵🔵🔵🔵⚪⚪

Run & Observe

1. Build the image : docker build -t my-spring-boot-app:latest .
2. Run the app: docker-compose up -d
3. Create the topic: http://localhost:8080/ui/clusters/local/all-topics/create-new-topic named burger.orders
4. Send a few orders:
   • curl -X POST "http://localhost:8080/orders?burger=DukeBurger
   • curl -X POST "http://localhost:8080/orders?burger=Veggie
   • curl -X POST "http://localhost:8080/orders?burger=DukeBurger
5. Check metrics: open http://localhost:8080/actuator/prometheus and search for events_DukeBurger_total. You should see it increase after each “DukeBurger” consumed.
6. Check in JMC: Connect  JMC to your app and In JMC; open MBean Browser (left pane); Expand the metric ; Navigate to the counter events_DukeBurger_total; Click it → Attributes tab → read Count; You should see it increase after each “DukeBurger” consumed.

JMC for Micrometer & Prometheus in Spring Boot: Kafka Burger Orders

🔵🔵🔵🔵🔵🔵🔵🔵🔵🔵🔵⚪

Takeaways

• Small steps win: REST → Kafka → Consumer → Metric is a powerful, simple pipeline.
• Micrometer first: Write metrics once; swap backends later (Prometheus today, Datadog tomorrow). See
• Tags matter: Add app and topic tags now. Your future dashboards will thank you.
• Avro stays lean: A tiny schema keeps payloads small and generated classes easy to use.
• CloudEvents optional: The headers help interoperability but are not required for Micrometer. Cloud Events

🔵🔵🔵🔵🔵🔵🔵🔵🔵🔵🔵🔵

Conclusion

You just wired Micrometer and Prometheus in Spring Boot around a Kafka flow and produced a clean, tagged counter you can graph and alert on. From here, extend the metric set (timers for latency, gauges for queue depth), add dashboards, and create an alert when events_DukeBurger_total stalls or spikes.
