Hazelcast + Kibana: Best Buddies for Exploring & Visualizing Data

November 04, 2021

Author(s)

  • Avatar photo
    Nicolas Frankel

    Nicolas is a developer advocate with 15+ years experience consulting for many different customers, in a wide range of contexts (such as telecoms, banking, insurances, large retail and public sector). ... Learn more

A lot, if not all, data science projects require some data visualization front-end to display the results for humans to analyze. Python seems to boast the most potent libraries, but do not lose hope if you're a Java developer (or if you're proficient in another language as well).

In this article I will describe how you can benefit from such a data visualization front-end without writing a single line of code.

The use case: changes from Wikipedia

I infer that you are already familiar with Wikipedia. If you do not, Wikipedia is an online encyclopedia curated by the community. In their own words:

Wikipedia is a free content, multilingual online encyclopedia written and maintained by a community of volunteer contributors through a model of open collaboration, using a wiki-based editing system.

The above is actually an excerpt of the Wikipedia entry on Wikipedia itself. Very meta.

The idea is to let anybody write anything on any subject and let the community decide whether the piece improves the body of knowledge - or not. You can think about this system as a worldwide Git review.

Even with this in place, it would be easy to overflow the reviewing capacity of the community by sending lots and lots of changes. To prevent such abuse, would-be contributors need to create an account first. However, it adds a layer of friction. If I want to contribute by fixing a typo, adding an image, or any other tiny task, creating my account would be more time-consuming than contributing. To allow for one-time contributions, Wikipedia allows anonymous changes. However, we get back to square one regarding abuses. To cover that, Wikipedia logs your IP in that case. The IP will appear in the change history instead of the account's name.

Now, my use-case is about visualizing worldwide, anonymous contributions. I'll first read the data from Wikipedia, filter out changes by authenticated accounts, infer the location of the change, infer the language of the change, and then display them on a worldwide map. From this point, I'd explore the changes visually and say that language and location match somehow.

We are going to achieve that by following a step-by-step process.

Waiting On the World to Change

The first step on our hands is actually to get data in, i.e., to get the changes from Wikipedia into our data store. It's pretty straightforward, as Wikipedia itself provides its changes on a dedicated Recent Changes page. If you press the "Live Update" button, you can see the list is updated in real-time (or very close to). Here's a screenshot of the changes at the time of the writing of this post:

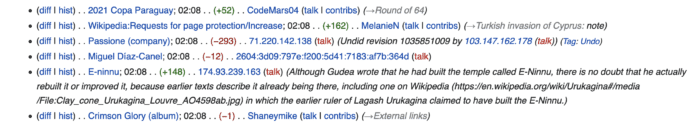

An excerpt of Wikpedia changes

Now is the time to create a data pipeline to get this data in Hazelcast. Note that if you want to follow along, the project is readily available on GitHub.

Wikipedia provides changes through Server-Sent Events. In short, with SSE, you register a client to the endpoint, and every time new data comes in, you are notified and can act accordingly. On the JVM, a couple of SSE-compatible clients are available, including Spring WebClient. Instead, I chose to use OkHttp EventSource because it's lightweight - it only depends on OkHttp, and its usage is relatively straightforward.

Here's an excerpt from the POM:

<dependency>
    <groupId>com.hazelcast</groupId>
    <artifactId>hazelcast</artifactId>
    <version>${hazelcast.version}</version>
</dependency>
<dependency>
    <groupId>com.launchdarkly</groupId>
    <artifactId>okhttp-eventsource</artifactId>
    <version>2.3.2</version>
</dependency>

Getting data in

Hazelcast data pipelines work by regularly polling the source. With an HTTP endpoint, that's straightforward, but with SSE, not so much as SSE relies on subscription. Hence, we need to implement a custom Source and design it around an internal queue to store the changes as they arrive, while polling will dequeue and send them further down the pipeline.

We design the code around the following components:

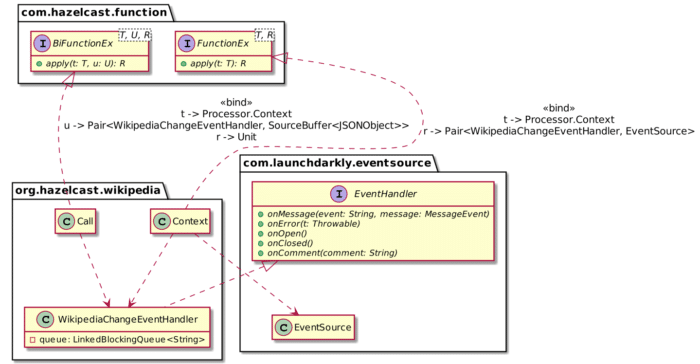

Wikipedia Changes class diagram

  • Context manages the subscription. It creates a new WikipediaChangeEventHandler instance and registers it as an observer of the SSE stream.
  • WikipediaChangeEventHandler is the subscribing part. Every time a change happens, it gets notified and queues the change payload in its internal queue.
  • The Hazelcast engine calls Call at regular intervals. When it happens, it dequeues items from WikipediaChangeEventHandler, transforms the plain string into a JSONObject, and puts the latter in the data pipeline buffer.

From a dynamic point of view, the system can be modeled as:

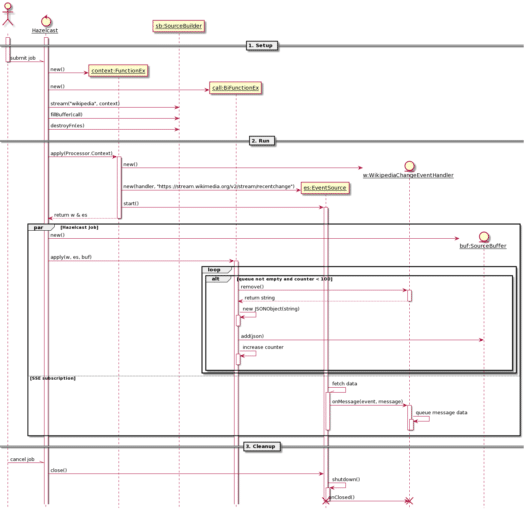

Wikipedia changes sequence diagram

Running the code outputs something like this:

{"server_script_path":"/w","server_name":"en.wikipedia.org","$schema":"/mediawiki/recentchange/1.0.0","bot":false,"wiki":"enwiki","type":"categorize","title":"Category:Biography articles without listas parameter","meta":{"dt":"2021-07-28T04:07:40Z","partition":0,"offset":363427323,"stream":"mediawiki.recentchange","domain":"en.wikipedia.org","topic":"codfw.mediawiki.recentchange","id":"01592c7a-03f1-46cd-9472-3bbe63aff0ec","uri":"https://en.wikipedia.org/wiki/Category:Biography_articles_without_listas_parameter","request_id":"b49c3b98-2064-44da-aab4-ab7b3bf65bdd"},"namespace":14,"comment":"[[:Talk:Jeff S. Klotz]] removed from category","id":1406951122,"server_url":"https://en.wikipedia.org","user":"Lepricavark","parsedcomment":"<a href=\"/wiki/Talk:Jeff_S._Klotz\" title=\"Talk:Jeff S. Klotz\">Talk:Jeff S. Klotz<\/a> removed from category","timestamp":1627445260}
{"server_script_path":"/w","server_name":"commons.wikimedia.org","$schema":"/mediawiki/recentchange/1.0.0","bot":true,"wiki":"commonswiki","type":"categorize","title":"Category:Flickr images reviewed by FlickreviewR 2","meta":{"dt":"2021-07-28T04:07:42Z","partition":0,"offset":363427324,"stream":"mediawiki.recentchange","domain":"commons.wikimedia.org","topic":"codfw.mediawiki.recentchange","id":"68f3a372-112d-4dae-af8f-25d88984f1d8","uri":"https://commons.wikimedia.org/wiki/Category:Flickr_images_reviewed_by_FlickreviewR_2","request_id":"1a132610-85e0-4954-9329-9e44691970aa"},"namespace":14,"comment":"[[:File:Red squirrel (51205279267).jpg]] added to category","id":1729953358,"server_url":"https://commons.wikimedia.org","user":"FlickreviewR 2","parsedcomment":"<a href=\"/wiki/File:Red_squirrel_(51205279267).jpg\" title=\"File:Red squirrel (51205279267).jpg\">File:Red squirrel (51205279267).jpg<\/a> added to category","timestamp":1627445262}
{"server_script_path":"/w","server_name":"commons.wikimedia.org","$schema":"/mediawiki/recentchange/1.0.0","bot":true,"wiki":"commonswiki","type":"categorize","title":"Category:Flickr review needed","meta":{"dt":"2021-07-28T04:07:42Z","partition":0,"offset":363427325,"stream":"mediawiki.recentchange","domain":"commons.wikimedia.org","topic":"codfw.mediawiki.recentchange","id":"b4563ed9-a6f2-40de-9e71-c053f5352846","uri":"https://commons.wikimedia.org/wiki/Category:Flickr_review_needed","request_id":"1a132610-85e0-4954-9329-9e44691970aa"},"namespace":14,"comment":"[[:File:Red squirrel (51205279267).jpg]] removed from category","id":1729953359,"server_url":"https://commons.wikimedia.org","user":"FlickreviewR 2","parsedcomment":"<a href=\"/wiki/File:Red_squirrel_(51205279267).jpg\" title=\"File:Red squirrel (51205279267).jpg\">File:Red squirrel (51205279267).jpg<\/a> removed from category","timestamp":1627445262}
{"server_script_path":"/w","server_name":"www.wikidata.org","$schema":"/mediawiki/recentchange/1.0.0","minor":false,"bot":true,"wiki":"wikidatawiki","length":{"new":31968,"old":31909},"type":"edit","title":"Q40652","revision":{"new":1468164253,"old":1446892882},"patrolled":true,"meta":{"dt":"2021-07-28T04:07:43Z","partition":0,"offset":363427326,"stream":"mediawiki.recentchange","domain":"www.wikidata.org","topic":"codfw.mediawiki.recentchange","id":"70784dde-0360-4292-9f62-81323ced9aa7","uri":"https://www.wikidata.org/wiki/Q40652","request_id":"f9686303-ffed-4c62-8532-bf870288ff55"},"namespace":0,"comment":"/* wbsetaliases-add:1|zh */ 蒂托, [[User:Cewbot#Import labels/aliases|import label/alias]] from [[zh:巴西國家足球隊]], [[zh:何塞·保罗·贝塞拉·马希尔·儒尼奥尔]], [[zh:2018年國際足協世界盃參賽球員名單]], [[zh:埃德爾·米利唐]], [[zh:加布里埃爾·馬丁內利]], [[zh:2019年南美超级德比杯]], [[zh:2019年美洲杯决赛]], [[zh:2019年美洲杯参赛名单]], [[zh:2021年美洲杯B组]], [[zh:2021年美洲國家盃決賽]]","id":1514670479,"server_url":"https://www.wikidata.org","user":"Cewbot","parsedcomment":"\u200e<span dir=\"auto\"><span class=\"autocomment\">Added Chinese alias: <\/span><\/span> 蒂托, <a href=\"/wiki/User:Cewbot#Import_labels/aliases\" title=\"User:Cewbot\">import label/alias<\/a> from <a href=\"https://zh.wikipedia.org/wiki/%E5%B7%B4%E8%A5%BF%E5%9C%8B%E5%AE%B6%E8%B6%B3%E7%90%83%E9%9A%8A\" class=\"extiw\" title=\"zh:巴西國家足球隊\">zh:巴西國家足球隊<\/a>, <a href=\"https://zh.wikipedia.org/wiki/%E4%BD%95%E5%A1%9E%C2%B7%E4%BF%9D%E7%BD%97%C2%B7%E8%B4%9D%E5%A1%9E%E6%8B%89%C2%B7%E9%A9%AC%E5%B8%8C%E5%B0%94%C2%B7%E5%84%92%E5%B0%BC%E5%A5%A5%E5%B0%94\" class=\"extiw\" title=\"zh:何塞·保罗·贝塞拉·马希尔·儒尼奥尔\">zh:何塞·保罗·贝塞拉·马希尔·儒尼奥尔<\/a>, <a href=\"https://zh.wikipedia.org/wiki/2018%E5%B9%B4%E5%9C%8B%E9%9A%9B%E8%B6%B3%E5%8D%94%E4%B8%96%E7%95%8C%E7%9B%83%E5%8F%83%E8%B3%BD%E7%90%83%E5%93%A1%E5%90%8D%E5%96%AE\" class=\"extiw\" title=\"zh:2018年國際足協世界盃參賽球員名單\">zh:2018年國際足協世界盃參賽球員名單<\/a>, <a href=\"https://zh.wikipedia.org/wiki/%E5%9F%83%E5%BE%B7%E7%88%BE%C2%B7%E7%B1%B3%E5%88%A9%E5%94%90\" class=\"extiw\" title=\"zh:埃德爾·米利唐\">zh:埃德爾·米利唐<\/a>, <a href=\"https://zh.wikipedia.org/wiki/%E5%8A%A0%E5%B8%83%E9%87%8C%E5%9F%83%E7%88%BE%C2%B7%E9%A6%AC%E4%B8%81%E5%85%A7%E5%88%A9\" class=\"extiw\" title=\"zh:加布里埃爾·馬丁內利\">zh:加布里埃爾·馬丁內利<\/a>, <a href=\"https://zh.wikipedia.org/wiki/2019%E5%B9%B4%E5%8D%97%E7%BE%8E%E8%B6%85%E7%BA%A7%E5%BE%B7%E6%AF%94%E6%9D%AF\" class=\"extiw\" title=\"zh:2019年南美超级德比杯\">zh:2019年南美超级德比杯<\/a>, <a href=\"https://zh.wikipedia.org/wiki/2019%E5%B9%B4%E7%BE%8E%E6%B4%B2%E6%9D%AF%E5%86%B3%E8%B5%9B\" class=\"extiw\" title=\"zh:2019年美洲杯决赛\">zh:2019年美洲杯决赛<\/a>, <a href=\"https://zh.wikipedia.org/wiki/2019%E5%B9%B4%E7%BE%8E%E6%B4%B2%E6%9D%AF%E5%8F%82%E8%B5%9B%E5%90%8D%E5%8D%95\" class=\"extiw\" title=\"zh:2019年美洲杯参赛名单\">zh:2019年美洲杯参赛名单<\/a>, <a href=\"https://zh.wikipedia.org/wiki/2021%E5%B9%B4%E7%BE%8E%E6%B4%B2%E6%9D%AFB%E7%BB%84\" class=\"extiw\" title=\"zh:2021年美洲杯B组\">zh:2021年美洲杯B组<\/a>, <a href=\"https://zh.wikipedia.org/wiki/2021%E5%B9%B4%E7%BE%8E%E6%B4%B2%E5%9C%8B%E5%AE%B6%E7%9B%83%E6%B1%BA%E8%B3%BD\" class=\"extiw\" title=\"zh:2021年美洲國家盃決賽\">zh:2021年美洲國家盃決賽<\/a>","timestamp":1627445263}
{"server_script_path":"/w","server_name":"www.wikidata.org","$schema":"/mediawiki/recentchange/1.0.0","minor":false,"bot":true,"wiki":"wikidatawiki","length":{"new":239,"old":161},"type":"edit","title":"Q107674623","revision":{"new":1468164250,"old":1468164243},"patrolled":true,"meta":{"dt":"2021-07-28T04:07:43Z","partition":0,"offset":363427327,"stream":"mediawiki.recentchange","domain":"www.wikidata.org","topic":"codfw.mediawiki.recentchange","id":"40260137-ee52-4a67-b024-22d3cf86907a","uri":"https://www.wikidata.org/wiki/Q107674623","request_id":"db6e073a-19f6-4658-9425-7992b34b4208"},"namespace":0,"comment":"/* wbsetlabel-add:1|de */ Favolaschia filopes","id":1514670480,"server_url":"https://www.wikidata.org","user":"SuccuBot","parsedcomment":"\u200e<span dir=\"auto\"><span class=\"autocomment\">Bezeichnung für [de] hinzugefügt: <\/span><\/span> Favolaschia filopes","timestamp":1627445263}
{"server_script_path":"/w","server_name":"ko.wikipedia.org","$schema":"/mediawiki/recentchange/1.0.0","minor":true,"bot":true,"wiki":"kowiki","length":{"new":1158,"old":1161},"type":"edit","title":"이시다테 야스키","revision":{"new":29895993,"old":26098259},"meta":{"dt":"2021-07-28T04:07:43Z","partition":0,"offset":363427328,"stream":"mediawiki.recentchange","domain":"ko.wikipedia.org","topic":"codfw.mediawiki.recentchange","id":"c23bdb77-e88c-48d3-9d24-3c4dd8ef1dbf","uri":"https://ko.wikipedia.org/wiki/%EC%9D%B4%EC%8B%9C%EB%8B%A4%ED%85%8C_%EC%95%BC%EC%8A%A4%ED%82%A4","request_id":"0010e77b-fbcd-4de8-a5ad-4616adbbd6d4"},"namespace":0,"comment":"봇: 분류 이름 변경 (분류:1984년 태어남 → [[분류:1984년 출생]])","id":56333828,"server_url":"https://ko.wikipedia.org","user":"TedBot","parsedcomment":"봇: 분류 이름 변경 (분류:1984년 태어남 → <a href=\"/wiki/%EB%B6%84%EB%A5%98:1984%EB%85%84_%EC%B6%9C%EC%83%9D\" title=\"분류:1984년 출생\">분류:1984년 출생<\/a>)","timestamp":1627445263}
{"server_script_path":"/w","server_name":"commons.wikimedia.org","$schema":"/mediawiki/recentchange/1.0.0","minor":false,"bot":true,"wiki":"commonswiki","length":{"new":3864,"old":527},"type":"edit","title":"File:Albizia kalkora 06.jpg","revision":{"new":577195372,"old":577193453},"patrolled":true,"meta":{"dt":"2021-07-28T04:07:44Z","partition":0,"offset":363427329,"stream":"mediawiki.recentchange","domain":"commons.wikimedia.org","topic":"codfw.mediawiki.recentchange","id":"1a7fcb55-dec7-4303-b757-19f6a6a4dcdd","uri":"https://commons.wikimedia.org/wiki/File:Albizia_kalkora_06.jpg","request_id":"7f841b4a-ac70-4c2b-a148-bc07696ccf7a"},"namespace":6,"comment":"/* wbeditentity-update:0| */ Adding structured data: date, camera, author, copyright & source","id":1729953360,"server_url":"https://commons.wikimedia.org","user":"BotMultichillT","parsedcomment":"\u200e<span dir=\"auto\"><span class=\"autocomment\">Changed an entity: <\/span><\/span> Adding structured data: date, camera, author, copyright & source","timestamp":1627445264}
{"server_script_path":"/w","server_name":"id.wikipedia.org","$schema":"/mediawiki/recentchange/1.0.0","minor":true,"bot":true,"wiki":"idwiki","length":{"new":977,"old":962},"type":"edit","title":"Euporus linearis","revision":{"new":18801346,"old":16068468},"patrolled":true,"meta":{"dt":"2021-07-28T04:07:43Z","partition":0,"offset":363427330,"stream":"mediawiki.recentchange","domain":"id.wikipedia.org","topic":"codfw.mediawiki.recentchange","id":"6c3882f9-9fd0-4f43-ab69-e538762c7981","uri":"https://id.wikipedia.org/wiki/Euporus_linearis","request_id":"dea59b42-7c97-4cbc-9384-5d8836a981ec"},"namespace":0,"comment":"[[Wikipedia:Bot|Bot]]: fixed → [[Kategori:Taxonbar tanpa parameter from|taxonbar tanpa parameter from]]","id":42309169,"server_url":"https://id.wikipedia.org","user":"HsfBot","parsedcomment":"<a href=\"/wiki/Wikipedia:Bot\" title=\"Wikipedia:Bot\">Bot<\/a>: fixed → <a href=\"/wiki/Kategori:Taxonbar_tanpa_parameter_from\" title=\"Kategori:Taxonbar tanpa parameter from\">taxonbar tanpa parameter from<\/a>","timestamp":1627445263}
{"server_script_path":"/w","server_name":"www.wikidata.org","$schema":"/mediawiki/recentchange/1.0.0","minor":false,"bot":false,"wiki":"wikidatawiki","length":{"new":25025,"old":24908},"type":"edit","title":"Q80075231","revision":{"new":1468164255,"old":1467697536},"patrolled":true,"meta":{"dt":"2021-07-28T04:07:44Z","partition":0,"offset":363427331,"stream":"mediawiki.recentchange","domain":"www.wikidata.org","topic":"codfw.mediawiki.recentchange","id":"720f6507-1ea1-4665-b1b9-1665c97450a9","uri":"https://www.wikidata.org/wiki/Q80075231","request_id":"43b7d511-007f-4005-a562-5002c7e0aff4"},"namespace":0,"comment":"/* wbsetdescription-add:1|dv */ އަކުއިލާ ނަކަތުގައިވާ ތަރިއެއް, [[:toollabs:quickstatements/#/batch/60416|batch #60416]]","id":1514670481,"server_url":"https://www.wikidata.org","user":"EN-Jungwon","parsedcomment":"\u200e<span dir=\"auto\"><span class=\"autocomment\">Added [dv] description: <\/span><\/span> އަކުއިލާ ނަކަތުގައިވާ ތަރިއެއް, <a href=\"https://iw.toolforge.org/quickstatements/#.2Fbatch.2F60416\" class=\"extiw\" title=\"toollabs:quickstatements/\">batch #60416<\/a>","timestamp":1627445264}
{"server_script_path":"/w","server_name":"www.wikidata.org","$schema":"/mediawiki/recentchange/1.0.0","minor":false,"bot":false,"wiki":"wikidatawiki","length":{"new":5312,"old":4884},"type":"edit","title":"Q85766437","revision":{"new":1468164246,"old":1342535335},"patrolled":true,"meta":{"dt":"2021-07-28T04:07:42Z","partition":0,"offset":363427332,"stream":"mediawiki.recentchange","domain":"www.wikidata.org","topic":"codfw.mediawiki.recentchange","id":"ad173600-09b7-4ccd-9490-4a60f6a432ea","uri":"https://www.wikidata.org/wiki/Q85766437","request_id":"1228a17e-2baa-46cc-a3bc-2049a62982c9"},"namespace":0,"comment":"/* wbcreateclaim-create:1| */ [[Property:P7937]]: [[Q7366]], [[:toollabs:quickstatements/#/batch/60404|batch #60404]]","id":1514670483,"server_url":"https://www.wikidata.org","user":"Moebeus","parsedcomment":"\u200e<span dir=\"auto\"><span class=\"autocomment\">Created claim: <\/span><\/span> <a href=\"/wiki/Property:P7937\" title=\"Property:P7937\">Property:P7937<\/a>: <a href=\"/wiki/Q7366\" title=\"Q7366\">Q7366<\/a>, <a href=\"https://iw.toolforge.org/quickstatements/#.2Fbatch.2F60404\" class=\"extiw\" title=\"toollabs:quickstatements/\">batch #60404<\/a>","timestamp":1627445262}
{"server_script_path":"/w","server_name":"www.wikidata.org","$schema":"/mediawiki/recentchange/1.0.0","minor":false,"bot":false,"wiki":"wikidatawiki","length":{"new":5134,"old":5126},"type":"edit","title":"Q12444793","revision":{"new":1468164254,"old":1413396080},"patrolled":false,"meta":{"dt":"2021-07-28T04:07:43Z","partition":0,"offset":363427333,"stream":"mediawiki.recentchange","domain":"www.wikidata.org","topic":"codfw.mediawiki.recentchange","id":"c01d52c5-c476-4554-814d-513342e04686","uri":"https://www.wikidata.org/wiki/Q12444793","request_id":"6d0a32b9-1234-4c8e-a02a-d92608f06d33"},"namespace":0,"comment":"/* wbsetdescription-set:1|hi */ भारत के उत्तराखण्ड राज्य का एक गाँव bikash","id":1514670482,"server_url":"https://www.wikidata.org","user":"2409:4061:219C:613E:DFD9:6BD4:F234:E7E0","parsedcomment":"\u200e<span dir=\"auto\"><span class=\"autocomment\">बदला [hi] विवरण: <\/span><\/span> भारत के उत्तराखण्ड राज्य का एक गाँव bikash","timestamp":1627445263}
{"server_script_path":"/w","server_name":"www.wikidata.org","$schema":"/mediawiki/recentchange/1.0.0","minor":false,"bot":false,"wiki":"wikidatawiki","length":{"new":22936,"old":22819},"type":"edit","title":"Q80075234","revision":{"new":1468164258,"old":1467697544},"patrolled":true,"meta":{"dt":"2021-07-28T04:07:44Z","partition":0,"offset":363427334,"stream":"mediawiki.recentchange","domain":"www.wikidata.org","topic":"codfw.mediawiki.recentchange","id":"7016afae-6691-4dca-bfaf-a5a3363edf31","uri":"https://www.wikidata.org/wiki/Q80075234","request_id":"aa4f6828-149d-4feb-a3cf-cd39902773fe"},"namespace":0,"comment":"/* wbsetdescription-add:1|dv */ އަކުއިލާ ނަކަތުގައިވާ ތަރިއެއް, [[:toollabs:quickstatements/#/batch/60416|batch #60416]]","id":1514670484,"server_url":"https://www.wikidata.org","user":"EN-Jungwon","parsedcomment":"\u200e<span dir=\"auto\"><span class=\"autocomment\">Added [dv] description: <\/span><\/span> އަކުއިލާ ނަކަތުގައިވާ ތަރިއެއް, <a href=\"https://iw.toolforge.org/quickstatements/#.2Fbatch.2F60416\" class=\"extiw\" title=\"toollabs:quickstatements/\">batch #60416<\/a>","timestamp":1627445264}
{"server_script_path":"/w","server_name":"de.wikipedia.org","$schema":"/mediawiki/recentchange/1.0.0","minor":false,"bot":true,"wiki":"dewiki","length":{"new":17069,"old":17075},"type":"edit","title":"Liste der Biografien/Caro","revision":{"new":214271460,"old":213857611},"meta":{"dt":"2021-07-28T04:07:43Z","partition":0,"offset":363427335,"stream":"mediawiki.recentchange","domain":"de.wikipedia.org","topic":"codfw.mediawiki.recentchange","id":"6618b0ab-eadf-405a-a474-ec2ad9fef8bb","uri":"https://de.wikipedia.org/wiki/Liste_der_Biografien/Caro","request_id":"23181b86-03de-4153-ad99-e7e20e611ed6"},"namespace":0,"comment":"Bot: Automatische Aktualisierung, siehe [[Benutzer:APPERbot/LdB]]","id":309672385,"server_url":"https://de.wikipedia.org","user":"APPERbot","parsedcomment":"Bot: Automatische Aktualisierung, siehe <a href=\"/wiki/Benutzer:APPERbot/LdB\" title=\"Benutzer:APPERbot/LdB\">Benutzer:APPERbot/LdB<\/a>","timestamp":1627445263}

Here's the last entry, but formatted for better understanding:

{
  "$schema": "/mediawiki/recentchange/1.0.0",
  "bot": true,
  "comment": "Bot: Automatische Aktualisierung, siehe [[Benutzer:APPERbot/LdB]]",
  "id": 309672385,
  "length": {
    "new": 17069,
    "old": 17075
  },
  "meta": {
    "domain": "de.wikipedia.org",
    "dt": "2021-07-28T04:07:43Z",
    "id": "6618b0ab-eadf-405a-a474-ec2ad9fef8bb",
    "offset": 363427335,
    "partition": 0,
    "request_id": "23181b86-03de-4153-ad99-e7e20e611ed6",
    "stream": "mediawiki.recentchange",
    "topic": "codfw.mediawiki.recentchange",
    "uri": "https://de.wikipedia.org/wiki/Liste_der_Biografien/Caro"
  },
  "minor": false,
  "namespace": 0,
  "parsedcomment": "Bot: Automatische Aktualisierung, siehe Benutzer:APPERbot/LdB",
  "revision": {
    "new": 214271460,
    "old": 213857611
  },
  "server_name": "de.wikipedia.org",
  "server_script_path": "/w",
  "server_url": "https://de.wikipedia.org",
  "timestamp": 1627445263,
  "title": "Liste der Biografien/Caro",
  "type": "edit",
  "user": "APPERbot",
  "wiki": "dewiki"
}

Kibana for data visualization

As I mentioned in the introduction, we have a fantastic tool at our disposal for data visualization that doesn't require writing code, and that tool is Kibana. Kibana is part of the so-called ELK stack:

  • Elasticsearch provides the storage and indexing part
  • Finally, Kibana offers dashboards and widgets to explore and visualize data stored in Elasticsearch

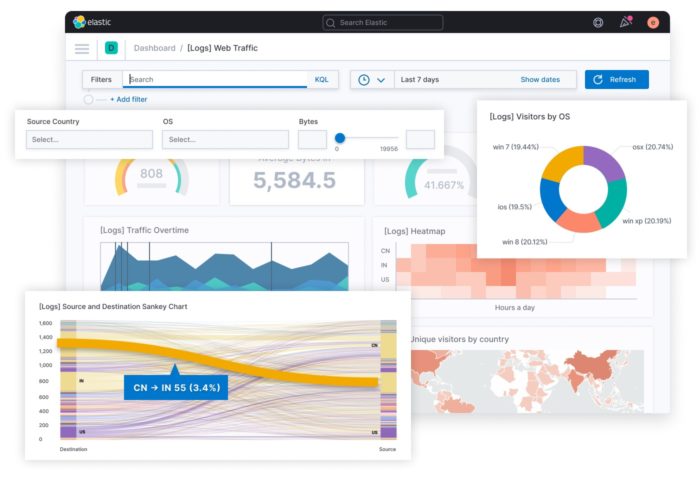

Illustrated screenshot of Kibana

Instead of writing to the standard output, we are going to write to an Elasticsearch instance. For that, we need to create the Sink. While you can use the Elasticsearch API directly, Hazelcast provides an extension to ease your job. Just add the com.hazelcast.jet:hazelcast-jet-elasticsearch-7 JAR to the classpath, and you can write the following:

private val clientBuilder = {
  val env = System.getenv()
  val user = env.getOrDefault("ELASTICSEARCH_USERNAME", "elastic")      // 1
  val password = env.getOrDefault("ELASTICSEARCH_PASSWORD", "changeme") // 1
  val host = env.getOrDefault("ELASTICSEARCH_HOST", "localhost")        // 1
  val port = env.getOrDefault("ELASTICSEARCH_PORT", "9200").toInt()     // 1
  ElasticClients.client(user, password, host, port)                     // 2
}

val elasticsearch = ElasticSinks.elastic(clientBuilder) {
  IndexRequest("wikipedia").source(it.toString(), XContentType.JSON)    // 3
}
  1. Provide some parameterization to allow to run in different environments
  2. Connect to the configured Elasticsearch instance
  3. Effectively send the data to ES. Under the cover, Hazelcast will batch the requests.

Now, the pipeline can be improved:

val pipeline = Pipeline.create().apply {
  readFrom(wikipedia)
    .withTimestamps({ it.getLong("timestamp") }, 100)
    .writeTo(elasticsearch)
}
Hazelcast.bootstrappedInstance().jet.newJob(pipeline)

The icing on the cake, with good naming, the Hazelcast API allows people who are not developers to follow the logic along.

Running the above pipeline, we can already see the results in Kibana. In case you don't have an instance available, the GitHub repository provides a docker-compose.yml file. You only need to start the infrastructure with docker compose up.

  1. Navigate to http://localhost:5601 with your favorite browser
  2. Authenticate with login elastic and password changeme
  3. Click on the "Create index pattern" button
  4. Enter wikipedia for the index name
  5. Click on the "Next step" button
  6. Choose field for meta.dt for the Time field
  7. Finalize by clicking on the "Create index pattern" button
  8. On the left menu, select Analytics → Discover

You should see something like this:

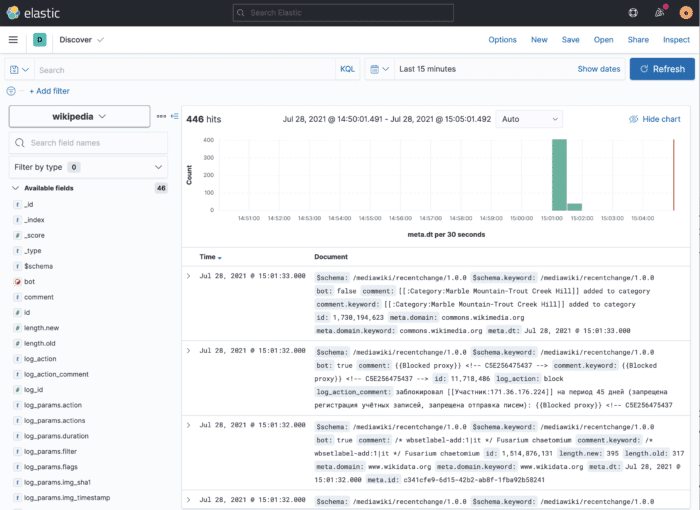

Wikipedia change events displayed via Kibana

Within this view, you can see all ingested documents. To explore further, you can choose the fields you want to see (on the right) and filter out documents based on their structure (in the Search bar above).

Curating "wrong" data

If you tried executing the job with the code at this step, you might have noticed that after some time, Elasticsearch stops ingesting data. Looking at the Hazelcast logs, you may notice a similar stack trace:

15:02:34.898 [ WARN] [c.h.j.i.e.TaskletExecutionService] [192.168.1.62]:5701 [dev] [5.0-BETA-1] Exception in ProcessorTasklet{068f-8bfa-4080-0001/elasticSink#0}
com.hazelcast.jet.JetException: failure in bulk execution:
[0]: index [wikipedia], type [_doc], id [PD017XoBfeUJ26i8qT-H], message [ElasticsearchException[Elasticsearch exception [type=mapper_parsing_exception, reason=object mapping for [log_params] tried to parse field [null] as object, but found a concrete value]]]
  at com.hazelcast.jet.elastic.ElasticSinkBuilder$BulkContext.lambda$flush$0(ElasticSinkBuilder.java:248)
  at com.hazelcast.jet.elastic.impl.RetryUtils.withRetry(RetryUtils.java:57)
  at com.hazelcast.jet.elastic.ElasticSinkBuilder$BulkContext.flush(ElasticSinkBuilder.java:244)
  at com.hazelcast.function.ConsumerEx.accept(ConsumerEx.java:47)
  at com.hazelcast.jet.impl.connector.WriteBufferedP.process(WriteBufferedP.java:73)
  at com.hazelcast.jet.impl.processor.ProcessorWrapper.process(ProcessorWrapper.java:97)
  at com.hazelcast.jet.impl.pipeline.FunctionAdapter$AdaptingProcessor.process(FunctionAdapter.java:226)
  at com.hazelcast.jet.impl.execution.ProcessorTasklet.lambda$processInbox$2f647568$2(ProcessorTasklet.java:439)
  at com.hazelcast.jet.function.RunnableEx.run(RunnableEx.java:31)
  at com.hazelcast.jet.impl.util.Util.doWithClassLoader(Util.java:498)
  at com.hazelcast.jet.impl.execution.ProcessorTasklet.processInbox(ProcessorTasklet.java:439)
  at com.hazelcast.jet.impl.execution.ProcessorTasklet.stateMachineStep(ProcessorTasklet.java:305)
  at com.hazelcast.jet.impl.execution.ProcessorTasklet.stateMachineStep(ProcessorTasklet.java:300)
  at com.hazelcast.jet.impl.execution.ProcessorTasklet.stateMachineStep(ProcessorTasklet.java:281)
  at com.hazelcast.jet.impl.execution.ProcessorTasklet.call(ProcessorTasklet.java:255)
  at com.hazelcast.jet.impl.execution.TaskletExecutionService$BlockingWorker.run(TaskletExecutionService.java:298)
  at java.base/java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:515)
  at java.base/java.util.concurrent.FutureTask.run(FutureTask.java:264)
  at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1128)
  at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:628)
  at java.base/java.lang.Thread.run(Thread.java:829)

It happens because of the way Elasticsearch works. As we didn't provide any explicit index schema, Elasticsearch inferred one for us from the first data payload it received. In this case, the log_params attribute has mostly the following structure:

"log_params": {
  "userid": 108038
}

Hence, Elasticsearch recognizes it as a JSON object with the userid property. Yet, sometimes, the stream contains "log_params":[], which is JSON array. Elasticsearch cannot reconcile between the two and throws the above exception.

To fix this, we can either filter out such data or transform the empty array property in an empty object property. As we would like to keep as much data as possible, let's choose the second option. As of now, we don't know if we will need to do it for another field, so it might be a good idea to make it generic:

class MakeFieldObjectIfArray(private val fieldName: String) : FunctionEx<JSONObject, JSONObject> { // 1
  override fun applyEx(json: JSONObject) = json.apply {           // 2
    if (json.has(fieldName) && json.get(fieldName) is JSONArray)  // 3
      put(fieldName, JSONObject())                                // 4
  }
}

val pipeline = Pipeline.create().apply {
  readFrom(wikipedia)
    .withTimestamps({ it.getLong("timestamp") }, 100)
    .map(MakeFieldObjectIfArray("log_params"))                    // 5
    .writeTo(elasticsearch)
}
  1. Define a FunctionEx that takes a JSONObject as a parameter and returns a JSONObject
  2. Return the same JSONObject with the following changes applied
  3. If the object has a specific field and if this field is a JSONArray
  4. Then replace the array with an empty JSONObject
  5. Map each item in the pipeline using the previously-defined FunctionEx

Rerunning the pipeline now works without any glitch!

Making it more readable and "operable"

Because the pipeline is stable, it's time to refactor to build upon solid foundations. The refactoring goes along two axes:

  • Code readability, developer-oriented
  • "Operationability", ops-oriented

On the developer side, we can improve the experience by leveraging Hazelcast's API. GeneralStage offers the usual pipeline primitives: map(), flatMap(), filter() and a couple of more specialized ones. However, at this granularity level, we'd rather focus on the what instead of the how. For this reason, StreamStage also provides an apply() function that transforms a StreamStage into another StreamStage. Let's use it:

class MakeFieldObjectIfArray(private val fieldName: String) : FunctionEx<StreamStage, StreamStage> {
  override fun applyEx(stage: StreamStage) = stage.map { json ->
    json.apply {
      if (json.has(fieldName) && json.get(fieldName) is JSONArray)
        put(fieldName, JSONObject())
    }
  }
}

To use it:

val pipeline = Pipeline.create().apply {
  readFrom(wikipedia)
    .withTimestamps({ it.getLong("timestamp") }, 100)
    .apply(MakeFieldObjectIfArray("log_params"))       // 1
    .writeTo(elasticsearch)
}
  1. Focus on the what

The next step is to improve the "operability". The only way to check what happens is to check Elasticsearch. If something happens in between (like above), it's hard to pinpoint exactly what the problem is. For that reason, we should add logging:

val pipeline = Pipeline.create().apply {
  readFrom(wikipedia)
    .withTimestamps({ it.getLong("timestamp") }, 100)
    .apply(MakeFieldObjectIfArray("log_params"))
    .peek()                                           // 1
    .writeTo(elasticsearch)
}
  1. We log every item to the standard output

With a lot of data, this can be too much noise. A sample is enough:

fun sampleEvery(frequency: Int) = PredicateEx {
  Random.nextInt(frequency) == 0                      // 1
}

val toStringFn = FunctionEx<Any?, String> {
  it?.toString()                                      // 2
}
  1. Return true if the random value between 0 and frequency is 0
  2. Null-safe toString()

We can now put this code to good use:

val pipeline = Pipeline.create().apply {
  readFrom(wikipedia)
    .withTimestamps({ it.getLong("timestamp") }, 100)
    .apply(MakeFieldObjectIfArray("log_params"))
    .peek(sampleEvery(50), toStringFn)                // 1
    .writeTo(elasticsearch)
}
  1. Sample one item per 50 on average

Also, Hazelcast provides an API to name each pipeline step.

class MakeFieldObjectIfArray(private val fieldName: String) : FunctionEx {
  override fun applyEx(stage: StreamStage) = stage
    .setName("remove-log-params-if-array")            // 1
    .map { json ->
      json.apply {
        if (json.has(fieldName) && json.get(fieldName) is JSONArray)
          put(fieldName, JSONObject())
      }
    }
}

With this, launching the pipeline outputs the following DAG log:

digraph DAG {
  "replace-log-params-if-array" [localParallelism=1];
  "replace-log-params-if-array-add-timestamps" [localParallelism=1];
  "map" [localParallelism=16];
  "elasticSink" [localParallelism=2];
  "replace-log-params-if-array" -> "replace-log-params-if-array-add-timestamps" [label="isolated", queueSize=1024];
  "replace-log-params-if-array-add-timestamps" -> "map" [queueSize=1024];
  "map" -> "elasticSink" [queueSize=1024];
}

Geo-locating data

Looking at the existing data, we can notice two types of contributions:

  1. Contributions by authenticated users, e.g., GeographBot
  2. Anonymous contributions, e.g.:
    • 84.243.214.62, for IP v4
    • 240D:2:A605:7600:A1DF:B7CA:5AF8:D971, for IP v6

There's no easy way to geo-locate using the former, but libraries and online APIs are available that leverage the latter. For this post, I've chosen to use MaxMind GeoIP database. It provides both a local file and a library to leverage it.

Let's add the necessary dependencies:

<dependency>
    <groupId>commons-validator</groupId>
    <artifactId>commons-validator</artifactId>
    <version>1.7</version>
</dependency>
<dependency>
    <groupId>com.maxmind.geoip2</groupId>
    <artifactId>geoip2</artifactId>
    <version>2.15.0</version>
</dependency>

Then, we can add an additional step in the processing pipeline to check whether the user is an IP and add the info if it is:

val enrichWithLocation = { stage: StreamStage ->
  stage.setName("enrich-with-location")                             // 1
    .mapUsingService(ServiceFactories.sharedService(databaseReaderSupplier)) { reader: DatabaseReader, json: JSONObject ->
       json.apply {
         if (!json.optBoolean("bot") && json.has("user")) {         // 2
           val user = json.getString("user")
           if (InetAddressValidator.getInstance().isValid(user)) {  // 3
             reader.tryCity(InetAddress.getByName(user))            // 4
                   .ifPresent { json.withLocationFrom(it) }         // 5
           }
         }
      }
    }
}

val pipeline = Pipeline.create().apply {
  readFrom(wikipedia)
    .withTimestamps({ it.getLong("timestamp") }, 100)
    .apply(MakeFieldObjectIfArray("log_params"))
    .apply(enrichWithLocation)                                      // 6
    .peek(sampleEvery(50), toStringFn)
    .writeTo(elasticsearch)
}
  1. Set a descriptive name
  2. If the bot property is false and if the user property exists
  3. Validate that the user is an IP, v4 or v6
  4. Geo-locate the IP
  5. Add the data to the JSON
  6. Add the step to the pipeline

Our first data visualization

With geo-located data, we would like to display changes on a world map. The good news, Kibana offers such a widget out-of-the-box.

  1. Go to Analytics | Maps
  2. Click on the Add Layer button
  3. Select Documents
  4. For the index, select wikipedia

Unfortunately, Kibana complains that the index doesn't contain any geospatial fields!

Indeed, while we formatted the data to create a data field that has latitude and longitude, Elasticsearch doesn't recognize it as a Geo-Point type. We need to map it explicitly. Worse, we cannot change the type of an existing field. Hence, we need to stop the pipeline, remove the current index, and lose all data.

  1. Go to Management | Stack Management
  2. Select Data | Index Management
  3. Check wikipedia
  4. Click on the Manage Index button
  5. Select Delete index
  6. Confirm deletion

We are now ready to map the field.

  1. Go to Management | Stack Management
  2. Select Data | Index Management
  3. Click on the Index Template tab (the 3rd one)
  4. Click on the Create template button
  5. Give it a relevant name, e.g., geo-locate
  6. Set an index pattern that matches wikipedia, e.g., wikipedia
  7. Click on Next to keep the defaults until you reach the 4th step - Mappings
  8. Add a new field named location.coordinates and with type Geo-point
  9. Click again on Next until the last step. The preview tab should display the following JSON:
    {
      "template": {
        "settings": {},
        "mappings": {
          "properties": {
            "location": {
              "properties": {
                "coordinates": {
                  "type": "geo_point"
                }
              }
            }
          }
        },
        "aliases": {}
      }
    }

  10. Click on the Create template button

In the wikipedia index, Elasticsearch will map every field named coordinates inside a field named location to a Geo-Point. For that reason, we need to change the mapping code slightly.

Let's create such a dedicated mapping function:

private fun JSONObject.withLocationFrom(response: CityResponse) {
    val country = JSONObject()
        .put("iso", response.country.isoCode)
        .put("name", response.country.name)
    val coordinates = JSONArray()
        .put(response.location.longitude)
        .put(response.location.latitude)
    val location = JSONObject()
        .put("country", country)
        .put("coordinates", coordinates)
        .put("city", response.city.name)
        .put("timezone", response.location.timeZone)
        .put("accuracy-radius", response.location.accuracyRadius)
    put("location", location)
}

We can now use it in the pipeline:

reader.tryCity(InetAddress.getByName(user))
    .ifPresent { json.withLocationFrom(it) }

Let's start the pipeline again. Now, we can try to repeat the steps to create a Map. This time, it recognizes the field we mapped as a Geo-point and lets us go further.

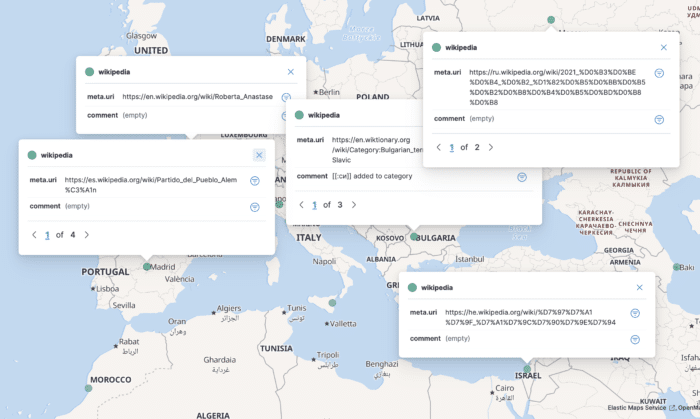

Click on the Add layer button on the bottom right corner. You can already enjoy some data points displayed on the map.

Exploring data

Data points are excellent, but not enough. Suppose that we want to understand the entries by their location. For that, we need to add fields, i.e., meta.uri and comment. Don't forget to name the layer and save it. It's now possible to click on a data point to display the related data:

Wikipedia is a source of information for millions of users around the world. Because contributions can be anonymous (and remember those are geo-located), a malicious user can update an article not to benefit the community but to further a geopolitical agenda. We could ask the data whether the triplet article-language-location seems ok and does it raise some red flags. We already have the article via the meta.uri and the location, we need to add the language.

Adding derived data

Two main options are available to get the language:

  1. From the server's URL, e.g., it.wikipedia.org implies Italian while fr.wikipedia.org mean French
  2. From the comment (if it's not empty)

For educational purposes, I decided to go with the second one. Each event already contains a comment field. Here's a sample:

  • "Anagrames [[esgota]], [[esgotà]], més canvis cosmètics"
  • "Added location template"
  • "[[:傑克·威爾許]]已添加至分类,[[Special:WhatLinksHere/傑克·威爾許|此页面包含在其他页面之内]]"
  • "/* wbsetdescription-add:1|ru */ провинция Алжира"
  • "/* Treindiensten */"
  • "יצירת דף עם התוכן \"אסף \"בובי\" מרוז, יליד חיפה, הינו מוזיקאי, מתופף, חבר בלהקות אבטיפוס, קילר ואיפה הילד == הרכבים == === קילר הלוהטת === בשנת 1980 - שימש מתופף של הלהקה קילר הלוהטת. === אבטיפוס === הלהקה הוקמה ב[[קריות]] באמצע [[שנות השמונים]] ועברה גלגולי הרכב שונים. בגלגולה הראשון בשנת...\"
  • "{{tham khảo|2}} → {{tham khảo|30em}}"
  • "Mooier wordt het er niet van."
  • "[[:Конуклар (Джиде)]] категори чу тоьхна"
  • Etc.

A linguist can infer the language of the field. It's also possible to use an automated process in the pipeline. A couple of NLP libraries are available in the JVM ecosystem, but I set my eyes on Lingua, one focused on language recognition.

We need to create an additional stage transforming function:

val languageDetectorSupplier = { _: ProcessorSupplier.Context ->
    LanguageDetectorBuilder
        .fromAllSpokenLanguages()
        .build()
}                                                                        // 1

val enrichWithLanguage = { stage: StreamStage<JSONObject> ->
    stage.setName("enrich-with-language")
        .mapUsingService(ServiceFactories.sharedService(languageDetectorSupplier)) { detector: LanguageDetector, json: JSONObject ->
            json.apply {
                val comment = json.optString("comment")
                if (comment.isNotEmpty()) {
                    val language = detector.detectLanguageOf(comment)   // 2
                    if (language != Language.UNKNOWN) {
                        json.put(
                            "language", JSONObject()                    // 3
                                .put("code2", language.isoCode639_1)
                                .put("code3", language.isoCode639_3)
                                .put("name", language.name)
                        )
                    }
                }
            }
        }
}
  1. Create the function that provides the language detector
  2. The magic happens here
  3. Add language-related data to the JSON

We can now use the newly-defined function in the pipeline:

val pipeline = Pipeline.create().apply {
        readFrom(wikipedia)
            .withTimestamps({ it.getLong("timestamp") }, 100)
            .apply(MakeFieldObjectIfArray("log_params"))
            .apply(enrichWithLocation)
            .apply(enrichWithLanguage)
            .peek(sampleEvery(50), toStringFn)
            .writeTo(elasticsearch)
    }

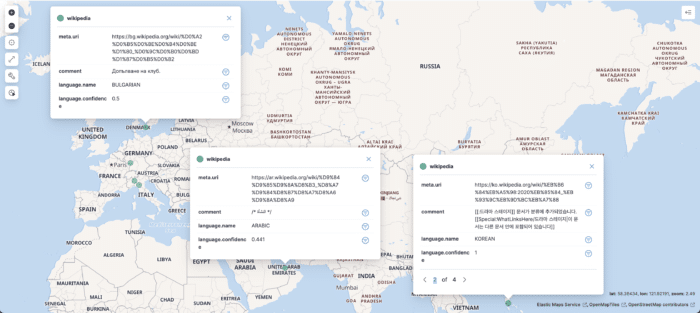

On the Kibana map, you can now add any language related fields, e.g., language.name to display it along the rest of the data points. Yet, some of them have an empty comment field so that the language is not shown. One option would be to update the data pipeline accordingly, but it's also possible to filter out unwanted data points on the Kibana interface. In general, that's the way to go: push data anyway and leave what data they want to display to the final user.

On the map, go to the Filtering section and add a KQL filter that filters out data points with no value: language.name : *. The result is something like the following:

Refining data

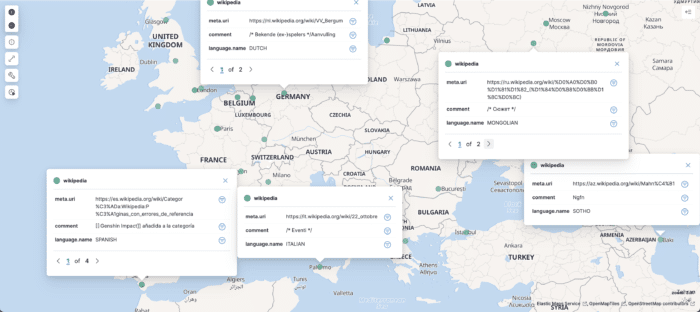

It's already better, though we can notice some discrepancies:

  • "Ngfn" is not Sotho but more like somebody didn't find a good comment
  • "сюжет" can be Bulgarian, Kazakh, or Russian, definitely not Mongolian

Though Lingua has good results, it's fallible. Fortunately, Lingua can return a single language from a text snippet and a map of languages with a confidence rating. The first language has a confidence rating of 1.0; the other ones have a confidence rating between 0.0 and 1.0.

For example, comment "Nufüs" returns the following map:

  • 1.0: Turkish
  • 0.762256422055537: German
  • 0.6951232183399704: Azerbaïjani
  • 0.6670947340824422: Estonian
  • 0.5291088632328994: Hungarian
  • 0.36574326772623783: Catalan

Hence, the closest the confidence rating of the second language is to 1, the lower the confidence in the first language. To reflect that, we can add to the data point the difference between the 1.0 and the second language's confidence rating. The above code is updated as:

val languagesWithConfidence = detector.computeLanguageConfidenceValues(comment)             // 1
if (languagesWithConfidence.isNotEmpty()) {
    val mostLikelyLanguage = languagesWithConfidence.firstKey()
    val secondMostLikelyConfidence = languagesWithConfidence.filterNot { it.key == mostLikelyLanguage }.maxBy { it.value }?.value ?: 0.0 // 2
    json.put(
        "language", JSONObject()
            .put("code2", mostLikelyLanguage.isoCode639_1)
            .put("code3", mostLikelyLanguage.isoCode639_3)
            .put("name", mostLikelyLanguage.name)
            .put("confidence", 1.0 - secondMostLikelyConfidence)                                 // 3
    )
}
  1. Get the sorted map of languages
  2. Get the confidence rating of the second language, or 0 if the map has a single element
  3. Add the confidence rating to the data point

Note that depending on the first data point of the pipeline, you might end up with a language.confidence field of type int, i.e., 0 or 1. If that happens, you need to delete the index and create an index template with a Double type as we already did above with the Geo-point.

At this point, you can display the language confidence and update the filter to filter out data points with low confidence, e.g., language.name : * and language.confidence > 0.2. Here's the result:

Conclusion

In this post, we have described how you could visualize and explore a data set with the help of the Hazelcast Platform for the pipelining part and Kibana for the visualization part. The latter doesn't need any front-end coding skills - or any coding skills whatsoever. You don't need to be a Pythonista nor a graphical library expert to start exploring your data sets now: being a developer on the JVM is enough.

Start exploring now!

The code source for this article is on GitHub.

Topics:

Related Articles

View All

Author(s)

  • Avatar photo
    Nicolas Frankel

    Nicolas is a developer advocate with 15+ years experience consulting for many different customers, in a wide range of contexts (such as telecoms, banking, insurances, large retail and public sector). ... Learn more

Comments (0)

Your email address will not be published. Required fields are marked *

Highlight your code snippets using [code lang="language name"] shortcode. Just insert your code between opening and closing tag: [code lang="java"] code [/code]. Or specify another language.

Save my name, email, and website in this browser for the next time I comment.

Subscribe to foojay updates:

https://foojay.io/feed/
Copied to the clipboard
