Understanding Stack Traces and Debugging them Further

October 05, 2021

Recently a junior developer sent me an obfuscated stack trace and was pretty surprised when I instantly knew the problem and pointed him at the necessary change. To be fair, I had the advantage of being the person who put that bug there in the first place… But still the ability to glean information from a stack trace, even an obfuscated one, is a serious skill.

The stack trace in question was a ClassNotFoundException, that’s typically pretty easy and already tells you everything you need to know. The class isn’t there. Why it isn’t there is really a matter of what we did wrong. In this case, since the project was obfuscated, the bug was that this class wasn’t excluded from obfuscation.

Despite all the hate it got over the years, NullPointerException is one of my favorite exceptions. You instantly know what happened and in most cases the stack leads almost directly to the problem. There are some edge cases e.g.:

myList.get(offset).invokeMethod();

So which one triggered the NullPointerException?

If you’re using the latest version of Java it would tell you, which is pretty cool. But if we’re still at Java 11 (or 8) there’s more than one option. At least 3 or maybe 4 if we cheat a bit:

  1. myList is the obvious one but it rarely is null and if so you would see it immediately
  2. offset can be null. It can be an Integer object in which case it can be null due to autoboxing. It’s also less likely
  3. The most likely culprit in this specific case is the return value from the get() method which means one of the list elements is null
  4. Finally invokeMethod itself can throw a NullPointerException. But that’s a bit of cheating since the stack will be a bit deeper

So without knowing anything about the code we can pretty much guess what failed at a line just by knowing the exception type. But this doesn’t lead us directly to the bug in all cases.

There Was a Null

That NullPointerException probably happened due to a null in the list. Assuming you verified that you might still not know how that null got into the list in the first place…

This isn’t hard to find out, let’s assume that the List is of the ArrayList type, in that case just open the ArrayList class (which you can do with Control-O in IntelliJ) and place a conditional breakpoint on the add() method. You can test if the value is null and that will stop at a breakpoint if someone tries to add null to the list.

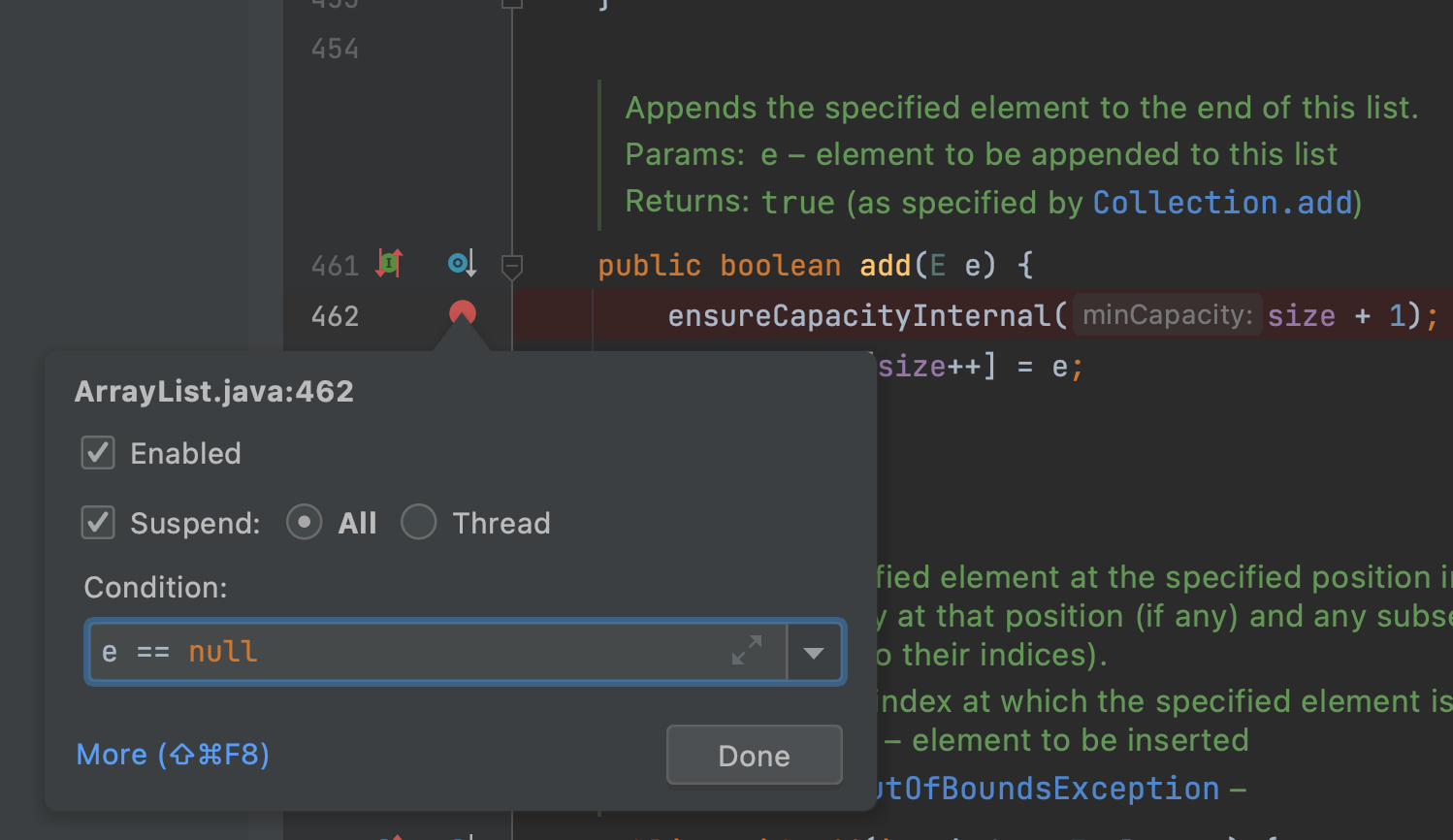

Check for null condition

Now this won’t catch all the cases of null sneaking into the list. It can do so via the stream API, via addAll() and a couple of other methods. The nice thing is that we can grab pretty much any one of those methods:

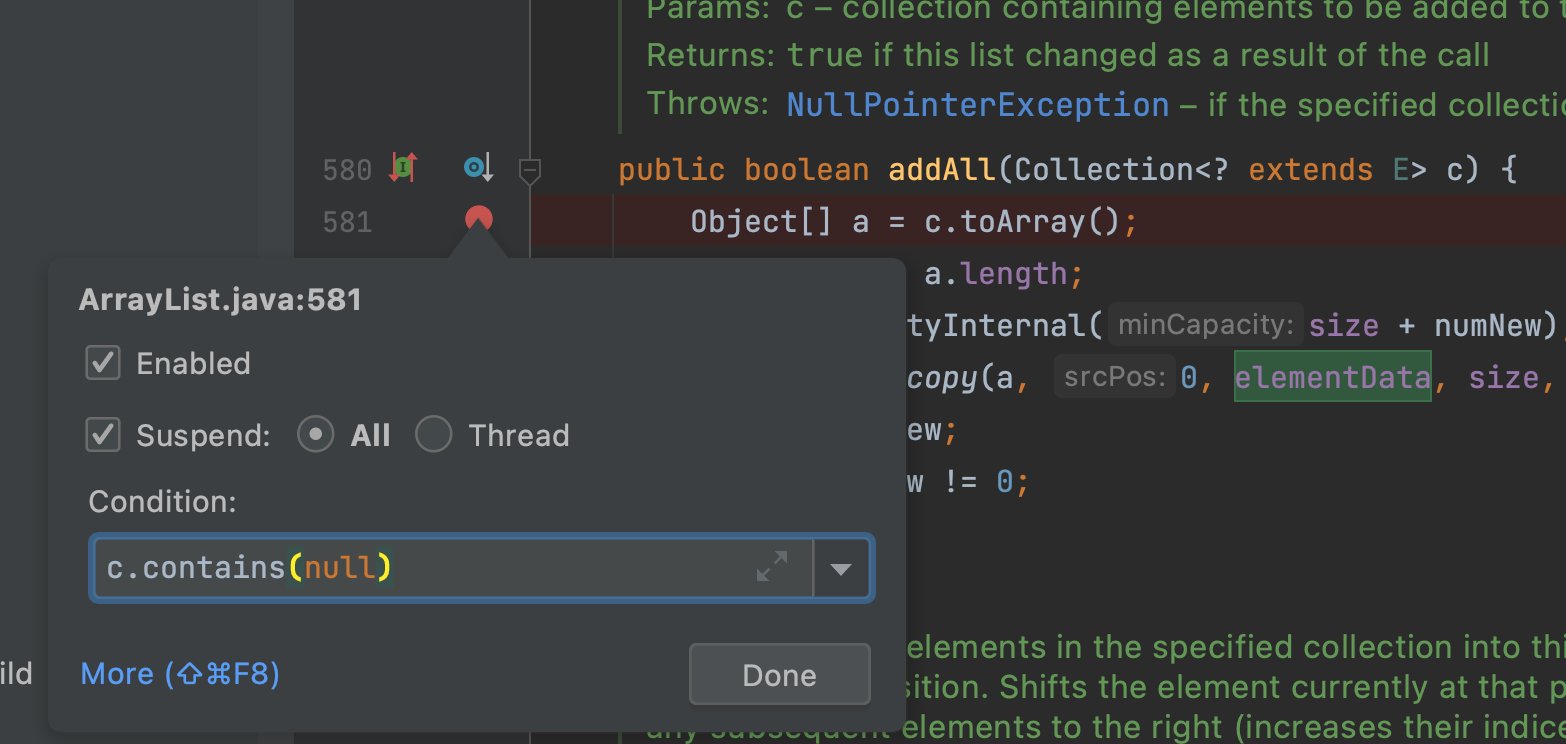

Grabbing addAll Calls

Since addAll() accepts a Collection we can use the standard contains() method to check if we have a null element in the Collection and if so stop.

What if this is “sometimes” OK?

So we run this code and bingo it stops at a breakpoint… But unfortunately this isn’t the right case. That breakpoint is related to a different list which we aren’t debugging right now. Apparently in that list a null value is OK and expected.

So we press continue and the breakpoint hits again and again and again. Each time for the wrong list… This is often the point where developers start cursing loudly and swearing off debuggers for good old logs.

So there are several ways around this problem. The most ideal one is to avoid that specific list. If you have a way of recognizing that list e.g. a global instance or the first element might be a specific value you can simply augment the original conditional breakpoint e.g. in this case we assume the first element in the null is OK list is 77 in which case this condition will workaround the problem:

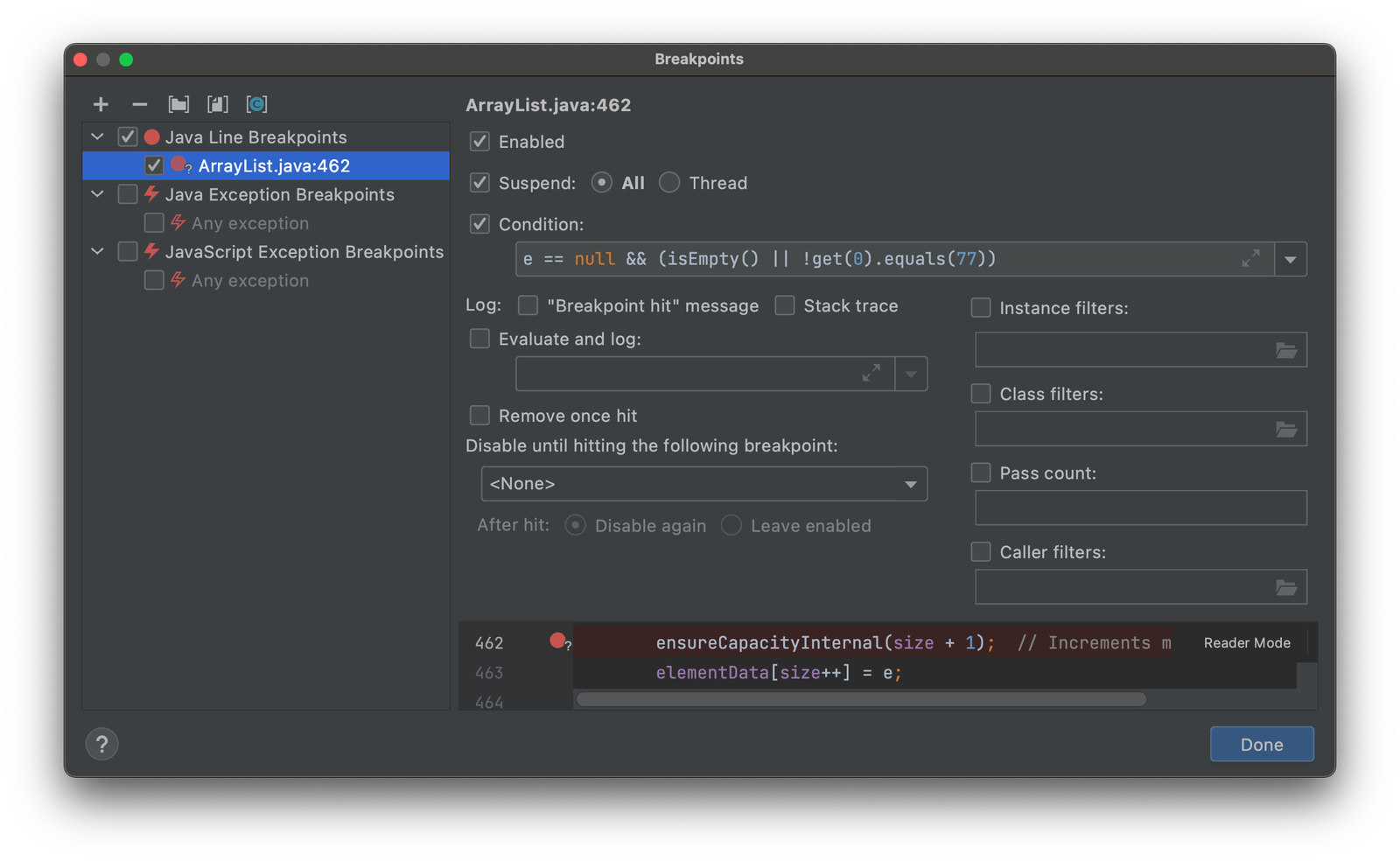

Hacking the Exception

This isn’t ideal but it works around the problem assuming it's localized enough.

Nested Stack Traces

So this is one of the “pains” in modern frameworks. The framework catches an exception and propagates it, wrapping it in its own exception. Rinse repeat. You end up with a Matryoshka doll of stack traces.

Sifting through all of those stacks and finding the one that matters is often a huge part of the pain. Especially in frameworks like Spring where the proxy code makes the stacks especially long and hard to read.

E.g.:

javax.ws.rs.ProcessingException: RESTEASY004655: Unable to invoke request: org.apache.http.conn.HttpHostConnectException: Connect to localhost:8443 [localhost/127.0.0.1, localhost/0:0:0:0:0:0:0:1] failed: Connection refused (Connection refused)
    at org.jboss.resteasy.client.jaxrs.engines.ApacheHttpClient4Engine.invoke(ApacheHttpClient4Engine.java:328)
    at org.jboss.resteasy.client.jaxrs.internal.ClientInvocation.invoke(ClientInvocation.java:443)
    at org.jboss.resteasy.client.jaxrs.internal.proxy.ClientInvoker.invokeSync(ClientInvoker.java:149)
    at org.jboss.resteasy.client.jaxrs.internal.proxy.ClientInvoker.invoke(ClientInvoker.java:112)
    at org.jboss.resteasy.client.jaxrs.internal.proxy.ClientProxy.invoke(ClientProxy.java:76)
    at com.sun.proxy.$Proxy307.grantToken(Unknown Source)
    at org.keycloak.admin.client.token.TokenManager.grantToken(TokenManager.java:90)
    at org.keycloak.admin.client.token.TokenManager.getAccessToken(TokenManager.java:70)
    at org.keycloak.admin.client.token.TokenManager.getAccessTokenString(TokenManager.java:65)
    at org.keycloak.admin.client.resource.BearerAuthFilter.filter(BearerAuthFilter.java:52)
    at org.jboss.resteasy.client.jaxrs.internal.ClientInvocation.filterRequest(ClientInvocation.java:579)
    at org.jboss.resteasy.client.jaxrs.internal.ClientInvocation.invoke(ClientInvocation.java:440)
    at org.jboss.resteasy.client.jaxrs.internal.proxy.ClientInvoker.invokeSync(ClientInvoker.java:149)
    at org.jboss.resteasy.client.jaxrs.internal.proxy.ClientInvoker.invoke(ClientInvoker.java:112)
    at org.jboss.resteasy.client.jaxrs.internal.proxy.ClientProxy.invoke(ClientProxy.java:76)
    at com.sun.proxy.$Proxy315.toRepresentation(Unknown Source)
    at io.athena_tech.server.security.keycloak.KeycloakRealmService.lambda$doesLightrunRealmExist$0(KeycloakRealmService.java:124)
    at io.athena_tech.server.security.keycloak.KeycloakApi.getWithAdmin(KeycloakApi.java:35)
    at io.athena_tech.server.security.keycloak.KeycloakRealmService.doesLightrunRealmExist(KeycloakRealmService.java:122)
    at io.athena_tech.server.security.keycloak.KeycloakRealmService$FastClassBySpringCGLIB$9e16800d.invoke(<generated>)
    at org.springframework.cglib.proxy.MethodProxy.invoke(MethodProxy.java:218)
    at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.invokeJoinpoint(CglibAopProxy.java:771)
    at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:163)
    at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:749)
    at org.springframework.transaction.interceptor.TransactionAspectSupport.invokeWithinTransaction(TransactionAspectSupport.java:366)
    at org.springframework.transaction.interceptor.TransactionInterceptor.invoke(TransactionInterceptor.java:118)
    at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
    at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:749)
    at org.springframework.aop.framework.CglibAopProxy$DynamicAdvisedInterceptor.intercept(CglibAopProxy.java:691)
    at io.athena_tech.server.security.keycloak.KeycloakRealmService$EnhancerBySpringCGLIB$7eca0d51.doesLightrunRealmExist(<generated>)
    at io.athena_tech.server.service.client.InitKeycloakService.initDefaultCompanies(InitKeycloakService.java:146)
    at io.athena_tech.server.service.client.InitKeycloakService$FastClassBySpringCGLIB$35f06991.invoke(<generated>)
    at org.springframework.cglib.proxy.MethodProxy.invoke(MethodProxy.java:218)
    at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.invokeJoinpoint(CglibAopProxy.java:771)
    at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:163)
    at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:749)
    at org.springframework.aop.aspectj.AspectJAfterThrowingAdvice.invoke(AspectJAfterThrowingAdvice.java:62)
    at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
    at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:749)
    at org.springframework.aop.interceptor.ExposeInvocationInterceptor.invoke(ExposeInvocationInterceptor.java:95)
    at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
    at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:749)
    at org.springframework.aop.framework.CglibAopProxy$DynamicAdvisedInterceptor.intercept(CglibAopProxy.java:691)
    at io.athena_tech.server.service.client.InitKeycloakService$EnhancerBySpringCGLIB$5ae1a459.initDefaultCompanies(<generated>)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
    at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.base/java.lang.reflect.Method.invoke(Method.java:566)
    at org.springframework.context.event.ApplicationListenerMethodAdapter.doInvoke(ApplicationListenerMethodAdapter.java:305)
    at org.springframework.context.event.ApplicationListenerMethodAdapter.processEvent(ApplicationListenerMethodAdapter.java:190)
    at org.springframework.context.event.ApplicationListenerMethodAdapter.onApplicationEvent(ApplicationListenerMethodAdapter.java:153)
    at org.springframework.context.event.SimpleApplicationEventMulticaster.doInvokeListener(SimpleApplicationEventMulticaster.java:172)
    at org.springframework.context.event.SimpleApplicationEventMulticaster.invokeListener(SimpleApplicationEventMulticaster.java:165)
    at org.springframework.context.event.SimpleApplicationEventMulticaster.multicastEvent(SimpleApplicationEventMulticaster.java:139)
    at org.springframework.context.support.AbstractApplicationContext.publishEvent(AbstractApplicationContext.java:403)
    at org.springframework.context.support.AbstractApplicationContext.publishEvent(AbstractApplicationContext.java:360)
    at org.springframework.boot.context.event.EventPublishingRunListener.running(EventPublishingRunListener.java:103)
    at org.springframework.boot.SpringApplicationRunListeners.running(SpringApplicationRunListeners.java:77)
    at org.springframework.boot.SpringApplication.run(SpringApplication.java:330)
    at io.athena_tech.server.AthenaServerApp.main(AthenaServerApp.java:64)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
    at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.base/java.lang.reflect.Method.invoke(Method.java:566)
    at org.springframework.boot.devtools.restart.RestartLauncher.run(RestartLauncher.java:49)
Caused by: org.apache.http.conn.HttpHostConnectException: Connect to localhost:8443 [localhost/127.0.0.1, localhost/0:0:0:0:0:0:0:1] failed: Connection refused (Connection refused)
    at org.apache.http.impl.conn.DefaultHttpClientConnectionOperator.connect(DefaultHttpClientConnectionOperator.java:156)
    at org.apache.http.impl.conn.PoolingHttpClientConnectionManager.connect(PoolingHttpClientConnectionManager.java:376)
    at org.apache.http.impl.execchain.MainClientExec.establishRoute(MainClientExec.java:393)
    at org.apache.http.impl.execchain.MainClientExec.execute(MainClientExec.java:236)
    at org.apache.http.impl.execchain.ProtocolExec.execute(ProtocolExec.java:186)
    at org.apache.http.impl.execchain.RetryExec.execute(RetryExec.java:89)
    at org.apache.http.impl.execchain.RedirectExec.execute(RedirectExec.java:110)
    at org.apache.http.impl.client.InternalHttpClient.doExecute(InternalHttpClient.java:185)
    at org.apache.http.impl.client.CloseableHttpClient.execute(CloseableHttpClient.java:83)
    at org.apache.http.impl.client.CloseableHttpClient.execute(CloseableHttpClient.java:56)
    at org.jboss.resteasy.client.jaxrs.engines.ApacheHttpClient4Engine.invoke(ApacheHttpClient4Engine.java:323)
    ... 64 common frames omitted
Caused by: java.net.ConnectException: Connection refused (Connection refused)
    at java.base/java.net.PlainSocketImpl.socketConnect(Native Method)
    at java.base/java.net.AbstractPlainSocketImpl.doConnect(AbstractPlainSocketImpl.java:399)
    at java.base/java.net.AbstractPlainSocketImpl.connectToAddress(AbstractPlainSocketImpl.java:242)
    at java.base/java.net.AbstractPlainSocketImpl.connect(AbstractPlainSocketImpl.java:224)
    at java.base/java.net.SocksSocketImpl.connect(SocksSocketImpl.java:403)
    at java.base/java.net.Socket.connect(Socket.java:609)
    at org.apache.http.conn.ssl.SSLConnectionSocketFactory.connectSocket(SSLConnectionSocketFactory.java:368)
    at org.apache.http.impl.conn.DefaultHttpClientConnectionOperator.connect(DefaultHttpClientConnectionOperator.java:142)
    ... 74 common frames omitted

Can someone tell me what I did wrong here when trying to run our server locally…

Let’s try to break it down starting from the lowest exception which is usually the root cause:

Caused by: java.net.ConnectException: Connection refused (Connection refused)
    at java.base/java.net.PlainSocketImpl.socketConnect(Native Method)
    at java.base/java.net.AbstractPlainSocketImpl.doConnect(AbstractPlainSocketImpl.java:399)
    at java.base/java.net.AbstractPlainSocketImpl.connectToAddress(AbstractPlainSocketImpl.java:242)
    at java.base/java.net.AbstractPlainSocketImpl.connect(AbstractPlainSocketImpl.java:224)
    at java.base/java.net.SocksSocketImpl.connect(SocksSocketImpl.java:403)
    at java.base/java.net.Socket.connect(Socket.java:609)
    at org.apache.http.conn.ssl.SSLConnectionSocketFactory.connectSocket(SSLConnectionSocketFactory.java:368)
    at org.apache.http.impl.conn.DefaultHttpClientConnectionOperator.connect(DefaultHttpClientConnectionOperator.java:142)

There’s a problem connecting. A connection is refused which means our server is trying to connect to some other server but it’s failing.

So this gave us some basic information but nothing else.

Let’s proceed one exception upward and look at the second block. Since it’s large I’ll only focus on the edge of the exception:

Caused by: org.apache.http.conn.HttpHostConnectException: Connect to localhost:8443 [localhost/127.0.0.1, localhost/0:0:0:0:0:0:0:1] failed: Connection refused (Connection refused)
    at org.apache.http.impl.conn.DefaultHttpClientConnectionOperator.connect(DefaultHttpClientConnectionOperator.java:156)
    at org.apache.http.impl.conn.PoolingHttpClientConnectionManager.connect(PoolingHttpClientConnectionManager.java:376)

Again nothing here. This is Apache connection code. But no information about who triggered it or why.

So we’re back all the way to the top which is less typical and here we can find the answer:

javax.ws.rs.ProcessingException: RESTEASY004655: Unable to invoke request: org.apache.http.conn.HttpHostConnectException: Connect to localhost:8443 [localhost/127.0.0.1, localhost/0:0:0:0:0:0:0:1] failed: Connection refused (Connection refused)
    at org.jboss.resteasy.client.jaxrs.engines.ApacheHttpClient4Engine.invoke(ApacheHttpClient4Engine.java:328)
    at org.jboss.resteasy.client.jaxrs.internal.ClientInvocation.invoke(ClientInvocation.java:443)
    at org.jboss.resteasy.client.jaxrs.internal.proxy.ClientInvoker.invokeSync(ClientInvoker.java:149)
    at org.jboss.resteasy.client.jaxrs.internal.proxy.ClientInvoker.invoke(ClientInvoker.java:112)
    at org.jboss.resteasy.client.jaxrs.internal.proxy.ClientProxy.invoke(ClientProxy.java:76)
    at com.sun.proxy.$Proxy307.grantToken(Unknown Source)
    at org.keycloak.admin.client.token.TokenManager.grantToken(TokenManager.java:90)
    at org.keycloak.admin.client.token.TokenManager.getAccessToken(TokenManager.java:70)
    at org.keycloak.admin.client.token.TokenManager.getAccessTokenString(TokenManager.java:65)
    at org.keycloak.admin.client.resource.BearerAuthFilter.filter(BearerAuthFilter.java:52)

If you’ll look a bit below you will see org.keycloak packages. This essentially means I forgot to launch keycloak before launching the server. This was well hidden in that stack and required a lot of domain knowledge (we use keycloak) to figure that out.

This sucks. If I was new to the team trying to get stuff to launch (which is exactly when this sort of exception happens), I would have been baffled by the exception. At least it would have taken me a while to figure it out. Unfortunately, I have no silver bullet for that specific problem.

Just keep reading the stack, the answer is usually in the edge (bottom or top). Don't give up if something isn't instantly clear.

TL;DR

In many cases we can glean the cause of an exception we see in the log or get from the user by just reviewing the stack trace and digging deeper. Obviously, keep in mind nested exceptions and other such issues.

The debugger can still be a great ally when trying to figure out the root cause of an exception stack. We can leverage features like conditional breakpoints to narrow this down. Surprisingly, we didn’t touch on exception breakpoints in this post. I think they have their value but when we have a stack we already know (roughly) what happened and where.

We need something that goes beyond that and I tried to cover that in this article.

Related Articles

View All
  • 8 Debugging Tips for IntelliJ IDEA Users You Never Knew Existed

    As developers, we’re all familiar with debuggers. We use debugging tools on a daily basis – they’re an essential part of programming. But let’s be honest. Usually, we only use the breakpoint option. If we’re feeling frisky, we might use a conditional breakpoint.

    But guess what, the IntelliJ IDEA debugger has many powerful and cutting-edge features that are useful for debugging more easily and efficiently.

    Read More
    Avatar photo
    Sep 09, 2021
  • Java Logging: What To Log & What Not To Log?

    Logs are a handy tool to spot mistakes and debug code. For engineers and, specifically, in a DevOps environment, the logs are a very valuable tool.

    In this article, I am going to guide you through a pragmatic approach to Java logging—what should we log, what shouldn’t we log, and how to implement Java logging properly.

    Read More
    Dec 18, 2021
  • Embracing JVM unified logging (JEP-158 / JEP-271)

    In the previous blog post, I briefly introduced unified logging and a simple GC configuration. However for the savvy GC tuners, there are many more options. And there are other logging options that transitionned to unified logging infrastructure as well.

    I wasn’t satisfied with the official documentation and other blog posts as they usually present only a fragmented picture of the previous options. This led me to dig in.

    Read More
    Avatar photo
    Mar 10, 2021

Author(s)

  • Shai Almog

    Developer Advocate at Lightrun. Co-Founder of Codename One. Java Rockstar, Speaker, Author, Blogger, open source hacker and pizza enthusiast

Comments (0)

Your email address will not be published.

Highlight your code snippets using [code lang="language name"] shortcode. Just insert your code between opening and closing tag: [code lang="java"] code [/code]. Or specify another language.

Save my name, email, and website in this browser for the next time I comment.

Subscribe to foojay updates:

https://foojay.io/feed/
Copied to the clipboard
