Spring Boot + Kafka Streams: Event Routing & Testing

Welcome to this hands-on guide to building a Spring Boot Kafka Streams application! (SpringBoot and Kafka Streams).

In this article, I’ll walk you through a project I built during the first day of a three-day Kafka Streams training. The goal? Validate sightseeing events in Lille based on predefined timetables and route the data accordingly.

Let’s explore how Kafka Streams powers a real-time city tour experience! 🧭

🔵⚪⚪⚪⚪⚪⚪⚪⚪⚪

1️⃣ The Use Case: Lille City Tour

Imagine you’re planning a visit through Lille, France.

You want to see:

• Gare Lille Flandres
• St. Maurice Church
• Les Moules Restaurant
• Place du Général de Gaulle
• Opera, and more...

Each sightseeing spot has a specific opening and closing time.
Visitors submit their visit plans, and we validate whether the visit can be scheduled within the location’s allowed timetable.

🔵🔵⚪⚪⚪⚪⚪⚪⚪⚪

2️⃣ The Goal

What I want to do!

1. Receive event submissions (location + visit time).
2. Check whether the visit is valid.
3. Route events:

• ✅ Valid visits → trip-steps topic.
• ❌ Invalid visits → DLQ topic (dead-letter queue).

🔵🔵🔵⚪⚪⚪⚪⚪⚪⚪

3️⃣ Tech Stack

What I used for this demo

• Apache Kafka
• Kafka Streams
• Kafka UI for topic management
• Kafka Streams Viz to visualize the topology
• Docker for local environment
• Java for stream logic

🔵🔵🔵🔵⚪⚪⚪⚪⚪⚪

4️⃣ Data Modeling

What is the model of the visit data

Each location has its own timetable:

[
  {
    "location": "Gare Lille Flandres",
    "timeRanges": [
      { "start": "08:00", "end": "12:00" },
      { "start": "14:00", "end": "18:00" }
    ]
  },
  {
    "location": "St. Maurice Church",
    "timeRanges": [
      { "start": "09:00", "end": "17:00" }
    ]
  }
]

Each event from the visitor looks like:

{
  "location": "Beffroi",
  "hour": "13:00"
}

The system will return:

{
  "location": "Beffroi",
  "hour": "13:00",
  "status": "OK"
}

Or, if the visit falls outside the available range:

{
  "location": "Beffroi",
  "hour": "20:00",
  "status": "KO"
}

🔵🔵🔵🔵🔵⚪⚪⚪⚪⚪

5️⃣ Kafka Streams Topology

🧠 Concept

Kafka Streams builds real-time processing flows using topologies.

In our case:

Input: visit-event topic

Processing:

• Deserialize the message
• Validate against ValidTimetableService
• Set status as OK/KO
• Branch stream

Output:

• trip-steps for valid events
• DLQ for invalid ones

🧾 Key Logic

The processors involved:

KStream<String, VisitEvent> rawVisits = builder.stream("visit-event");

KStream<String, VisitStatus> validatedVisits = rawVisits
    .mapValues(event -> {
        boolean isValid = validTimetableService.isValid(event.getLocation(), event.getHour());
        return new VisitStatus(event.getLocation(), event.getHour(), isValid ? "OK" : "KO");
    });

validatedVisits.split()
    .branch((key, status) -> "OK".equals(status.getStatus()), Branched.withConsumer(ks -> ks.to("trip-steps")))
    .branch((key, status) -> "KO".equals(status.getStatus()), Branched.withConsumer(ks -> ks.to("DLQ")));

🖥️ Visualization

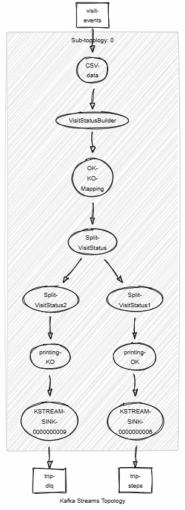

Using Kafka Streams Viz: Kafka Streams Topology Visualizer)

I generated this simple topology:

Or in simple way:
[ visit-event ] --> [ validation logic ] --> [ trip-steps / DLQ ]
Each branch of the stream is defined clearly, allowing easy debugging and maintainability.

🔵🔵🔵🔵🔵🔵⚪⚪⚪⚪

6️⃣ Tools in Action

🔄 Kafka Topics: All messages are pushed and consumed in real time.

Topics involved: visit-events, trip-steps, trip-dlq

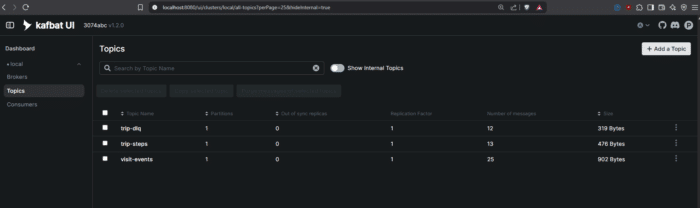

🧰 Kafbat UI: Used to inspect Kafka topics and payloads during development.

kafbat-ui:
  container_name: kafbat-ui
  image: ghcr.io/kafbat/kafka-ui:latest
  ports:
    - 8080:8080
  environment:
    DYNAMIC_CONFIG_ENABLED: 'true'
    KAFKA_CLUSTERS_0_NAME: local
    KAFKA_CLUSTERS_0_BOOTSTRAPSERVERS: kafka:29092

🧭 ValidTimetableService: A custom utility that loads all location timetables and verifies visit requests.

/**
     * Sends the list of events to the specified Kafka topic.
     * @param bootstrapServers Kafka bootstrap servers
     * @param topic Kafka topic to send messages to
     * @param events List of CSV event lines to send
     */
    public static void produceEvents(String bootstrapServers, String topic, List<String> events) {
        Properties props = new Properties();
        props.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, bootstrapServers);
        props.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, StringSerializer.class.getName());
        props.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, StringSerializer.class.getName());

        try (KafkaProducer<String, String> producer = new KafkaProducer<>(props)) {
            for (String event : events) {
                ProducerRecord<String, String> record = new ProducerRecord<>(topic, null, event);
                producer.send(record, (metadata, exception) -> {
                    if (exception != null) {
                        System.err.println("Failed to send event: " + event);
                        exception.printStackTrace();
                    } else {
                        System.out.printf("Sent: %s to partition %d offset %d%n", event, metadata.partition(), metadata.offset());
                    }
                });
            }
            producer.flush();
        }
    }

🧪 Unit Tests: Every logic block is testable, ensuring accuracy before production deployment.

class VisitStatusTopologyTest {

    private TopologyTestDriver testDriver;
    private TestInputTopic<String, String> inputTopic;
    private TestOutputTopic<String, VisitStatus> okOutputTopic;
    private TestOutputTopic<String, VisitStatus> koOutputTopic;
    private final String inputTopicName = "visit-events";
    private final String okTopicName = "trip-steps";
    private final String koTopicName = "trip-dlq";

    private final Serde<String> stringSerde = Serdes.String();
    private final Serde<VisitStatus> visitStatusSerde = new VisitStatusSerde();

    @BeforeEach
    void setup() {
        VisitStatusTopology topology = new VisitStatusTopology();
        Topology kafkaTopology = topology.build();

        Properties props = new Properties();
        props.put(StreamsConfig.APPLICATION_ID_CONFIG, "test-visit-status-app");
        props.put(StreamsConfig.BOOTSTRAP_SERVERS_CONFIG, "dummy:9092");
        props.put(StreamsConfig.DEFAULT_KEY_SERDE_CLASS_CONFIG, Serdes.String().getClass());
        props.put(StreamsConfig.DEFAULT_VALUE_SERDE_CLASS_CONFIG, Serdes.String().getClass());

        testDriver = new TopologyTestDriver(kafkaTopology, props);

        inputTopic = testDriver.createInputTopic(inputTopicName, stringSerde.serializer(), stringSerde.serializer());
        okOutputTopic = testDriver.createOutputTopic(okTopicName, stringSerde.deserializer(), visitStatusSerde.deserializer());
        koOutputTopic = testDriver.createOutputTopic(koTopicName, stringSerde.deserializer(), visitStatusSerde.deserializer());
    }

    @AfterEach
    void teardown() {
        testDriver.close();
    }

    @Test
    void testValidVisitGoesToOkTopic() {
        // Given a valid visit event within timetable range (e.g. Place Louise de Bettignies is always valid)
        String input = "Place Louise de Bettignies,12:00,OK";

        // When sending input record
        inputTopic.pipeInput(null, input);

        // Then output in OK topic with status "OK"
        assertFalse(okOutputTopic.isEmpty());
        VisitStatus visitStatus = okOutputTopic.readValue();
        assertEquals("Place Louise de Bettignies", visitStatus.location());
        assertEquals("12:00", visitStatus.time());
        assertEquals("OK", visitStatus.status());

        // NOK topic should be empty
        assertTrue(koOutputTopic.isEmpty());
    }
    //...

👨‍💻Full repsoitory on GitHub: vinny59200 / kstream-lille-city-tour

🔵🔵🔵🔵🔵🔵🔵⚪⚪⚪

7️⃣ What I Learned

This project helped solidify my understanding of:

• Stream processing design with Kafka
• Real-time data validation
• Branching and routing event streams
• Working with external services (like timetable checks) inside a stream

And most importantly, building a real-life use case that’s both educational and fun!

🔵🔵🔵🔵🔵🔵🔵🔵⚪⚪

8️⃣ Next Steps

Going further with SpringBoot and Kafka Streams

Here’s what could be added next:

• Store validated trips in a database (PostgreSQL or MongoDB)
• Add user context and preferences
• Visualize city tour analytics on a live dashboard
• Expose REST endpoints to submit visits and query status

🔵🔵🔵🔵🔵🔵🔵🔵🔵⚪

9️⃣ Try It Yourself

Want to explore this yourself?

Clone the project (vinny59200 / kstream-lille-city-tour), run the containers, and start submitting events to see the validation in action.

🧪 Tip: Modify the timetable and see how event routing changes instantly!

🔵🔵🔵🔵🔵🔵🔵🔵🔵🔵

🔟 Conclusion

SpringBoot and Kafka Streams – Event Routing & Testing

Kafka Streams is an incredibly powerful tool for building real-time event processing pipelines.
Through this Lille City Tour demo, we created a tangible use case that demonstrates stream branching, data validation, and error routing with just a few lines of code.

Want the code? vinny59200 / kstream-lille-city-tour

Thanks for joining the tour! 🇫🇷✨
